Drawing based selection of high purity ceramic guides for synthetic filament machinery.

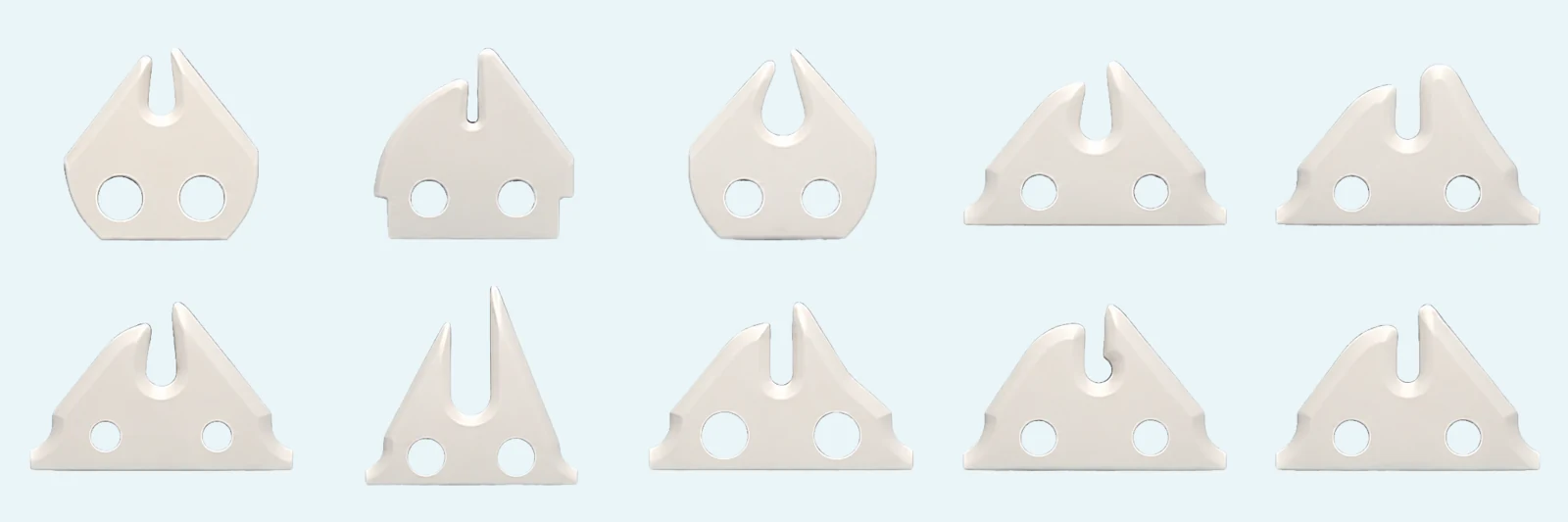

High purity ceramic guides
Match the component to the approved drawing and machine position.
Enquire about this product View Brochure →

Drawing confirmation: TF997-1213 appears against different geometries in the supplied brochure. TF997-1280 and TF997-1315 also share an OEM reference in that document. Confirm the required drawing and machine position before ordering.

Ceramic Yarn Guides

Precision 99.7% Alumina Guide Components

Yarn friendly guide pins and loop guides with controlled yarn contact geometry.

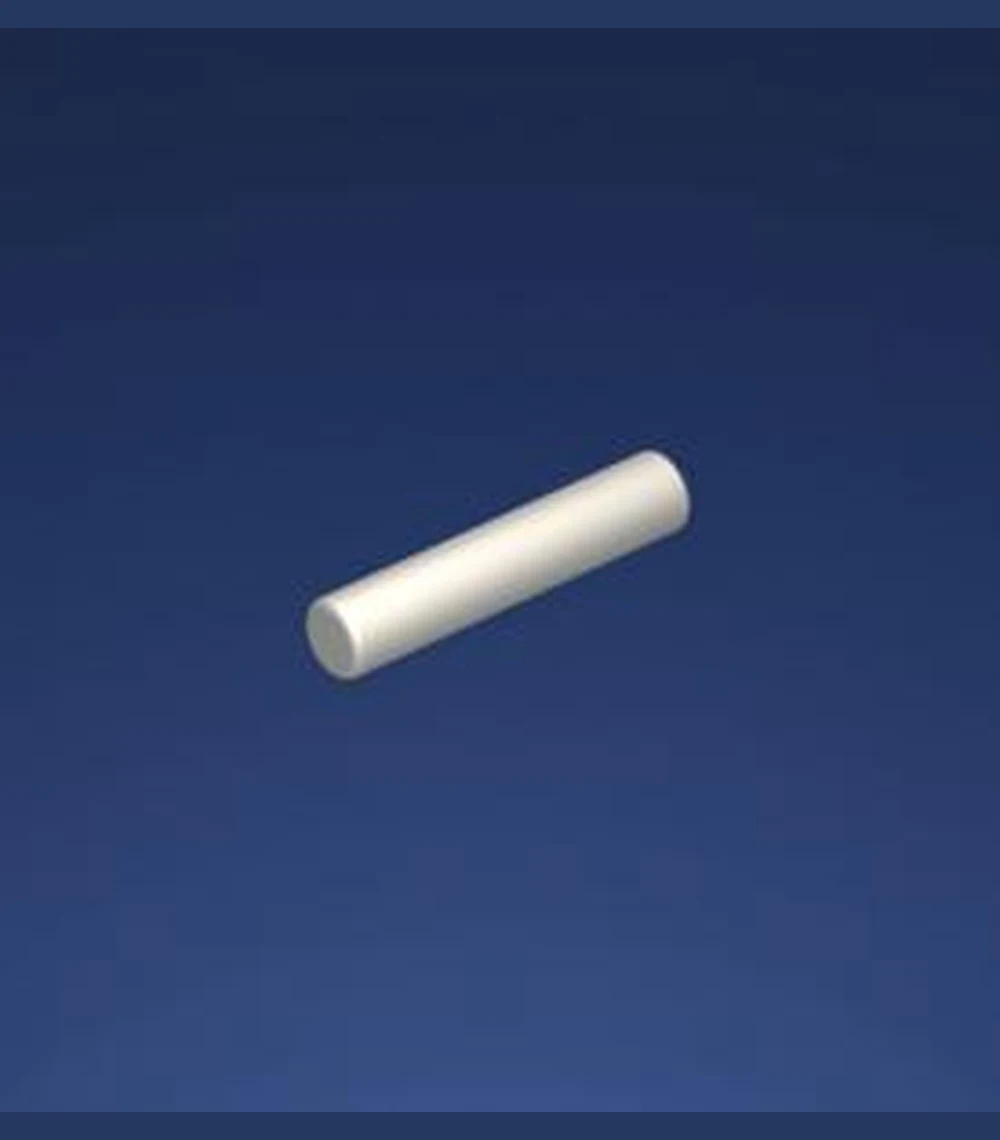

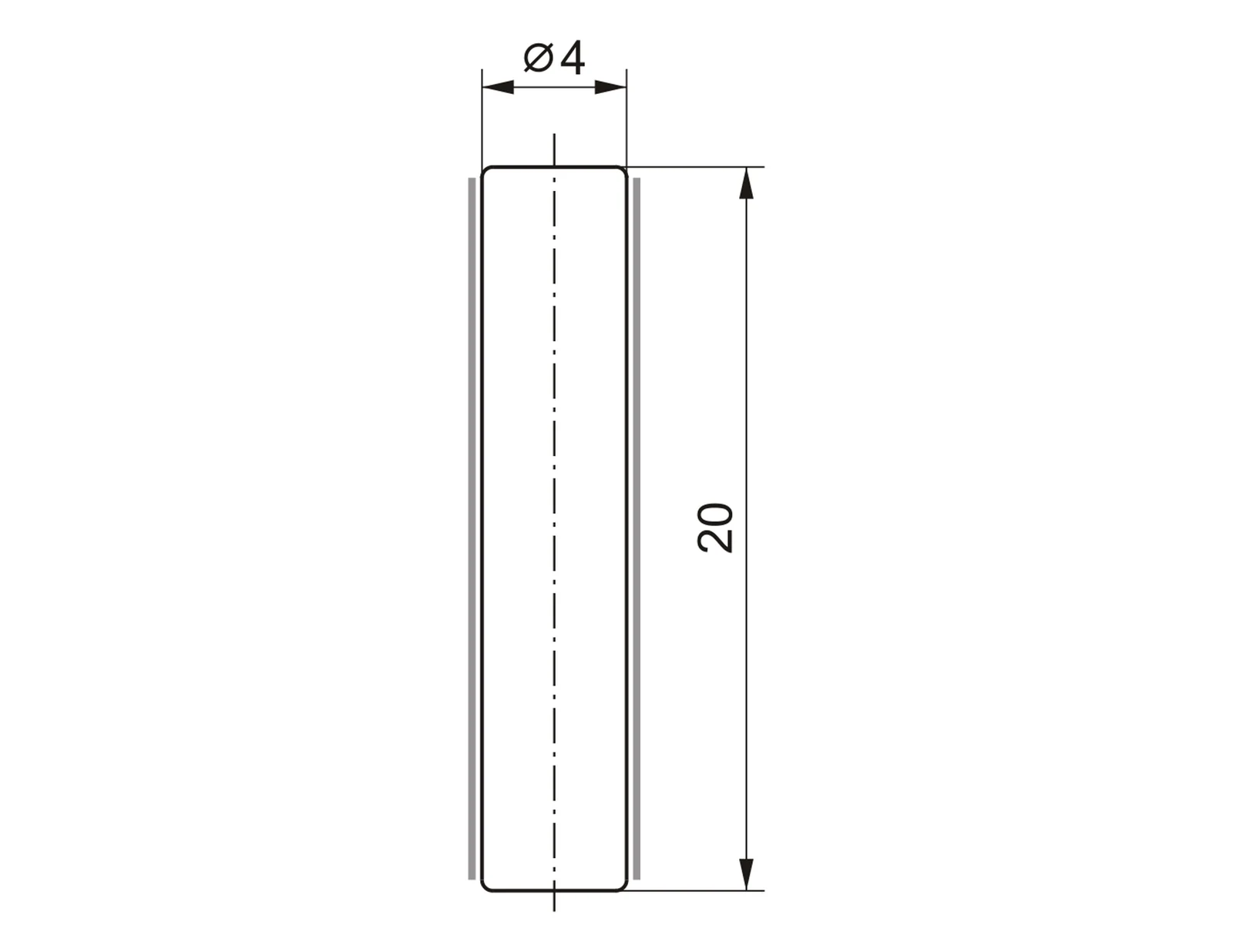

TF997-1109 BARMAG REF. 555518/5 99.7% ALUMINA · Guide Pin · Ø4 × 20
TF997-1109 BARMAG REF. 555518/5 99.7% ALUMINA · Guide Pin · Ø4 × 20

TF997-1109

Barmag Ref. 555518/5

99.7% ALUMINA · Guide Pin · Ø4 × 20

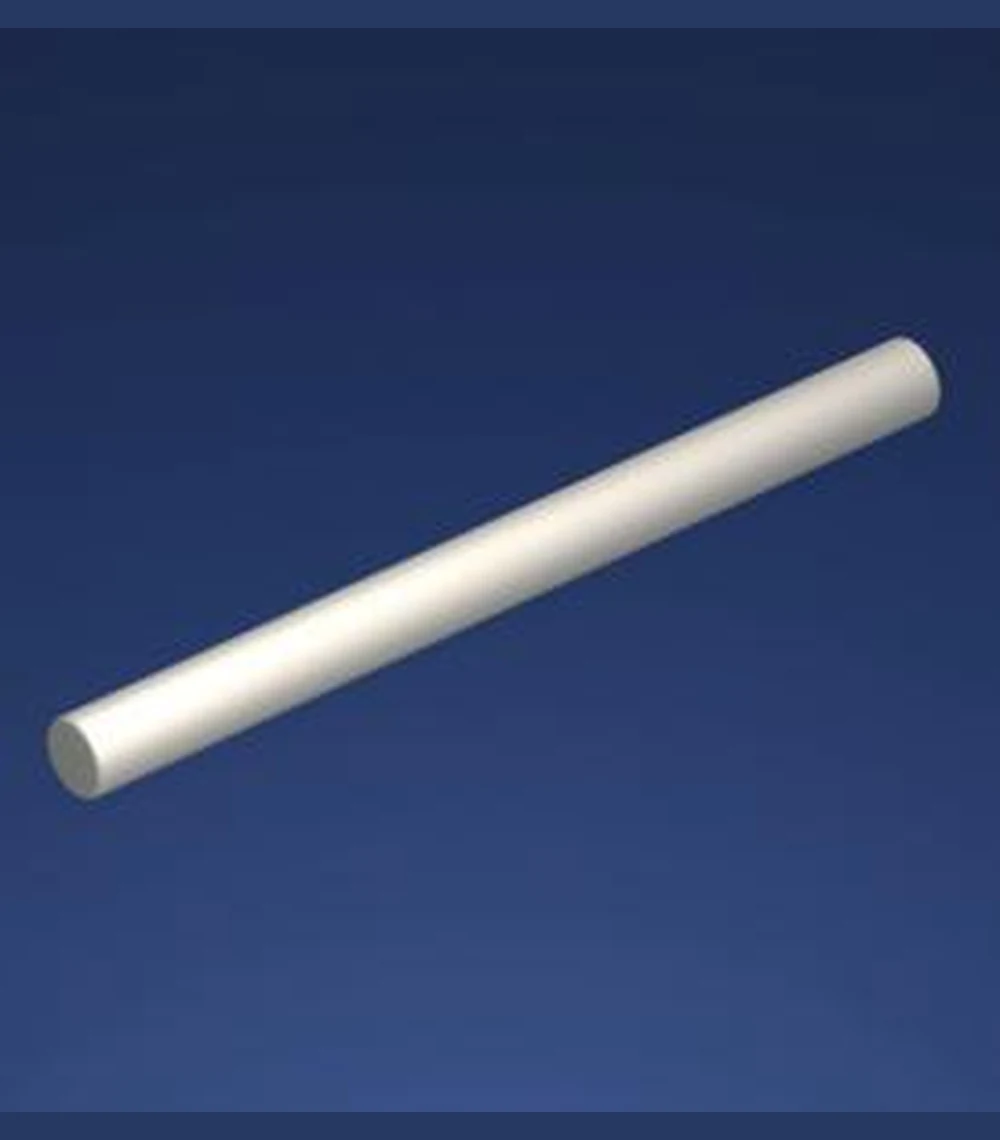

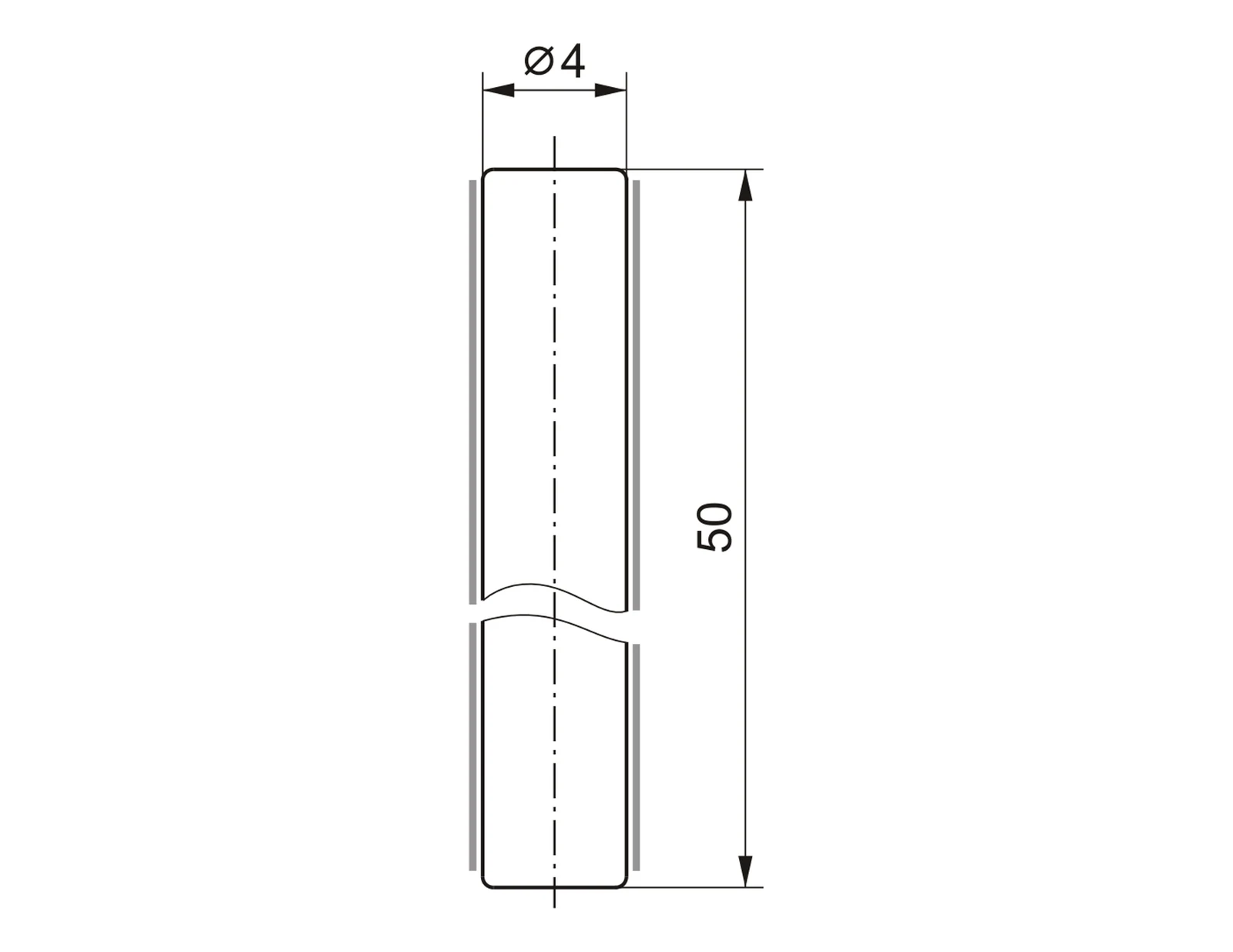

TF997-1112 BARMAG REF. 309620/5 99.7% ALUMINA · Guide Pin · Ø4 × 50
TF997-1112 BARMAG REF. 309620/5 99.7% ALUMINA · Guide Pin · Ø4 × 50

TF997-1112

Barmag Ref. 309620/5

99.7% ALUMINA · Guide Pin · Ø4 × 50

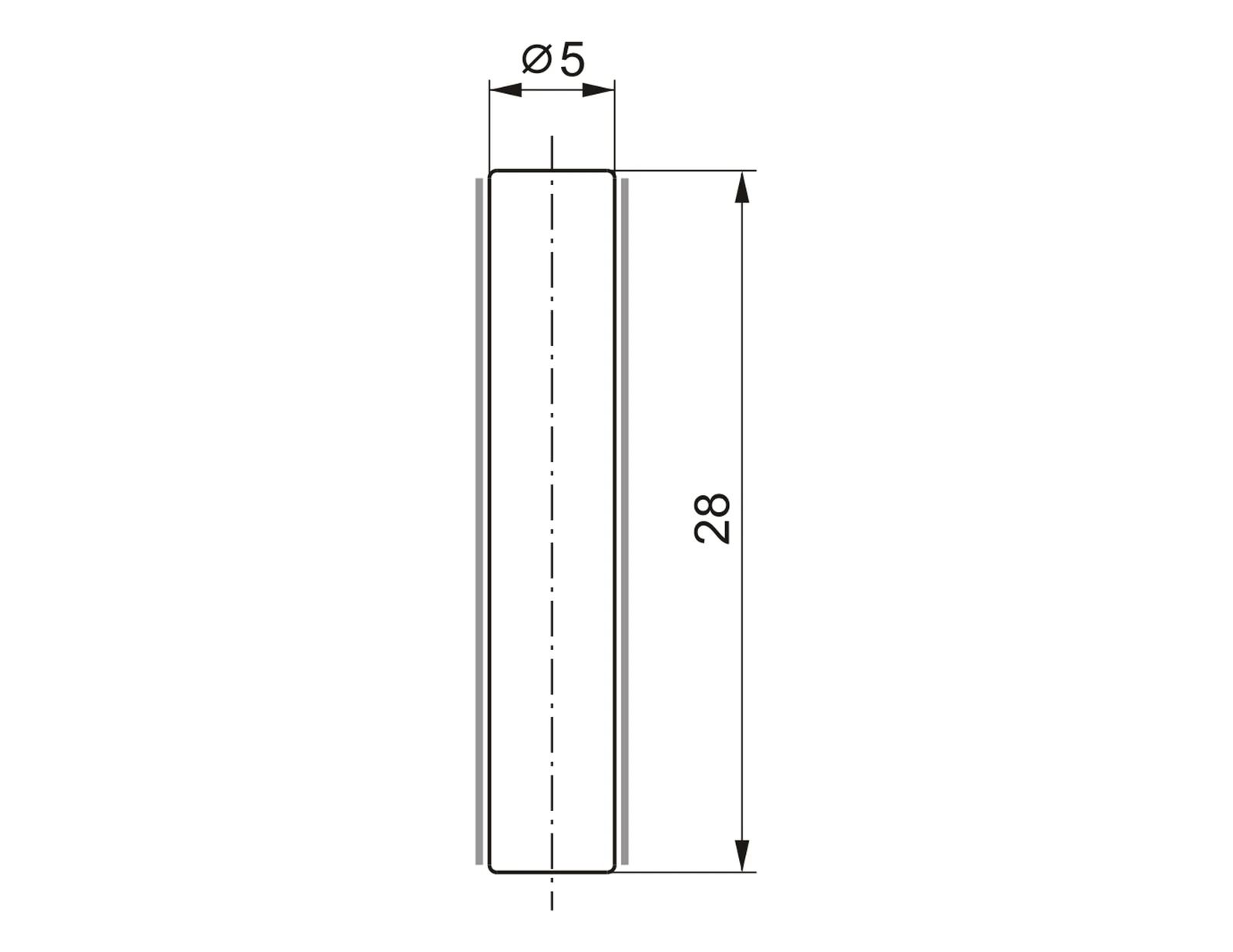

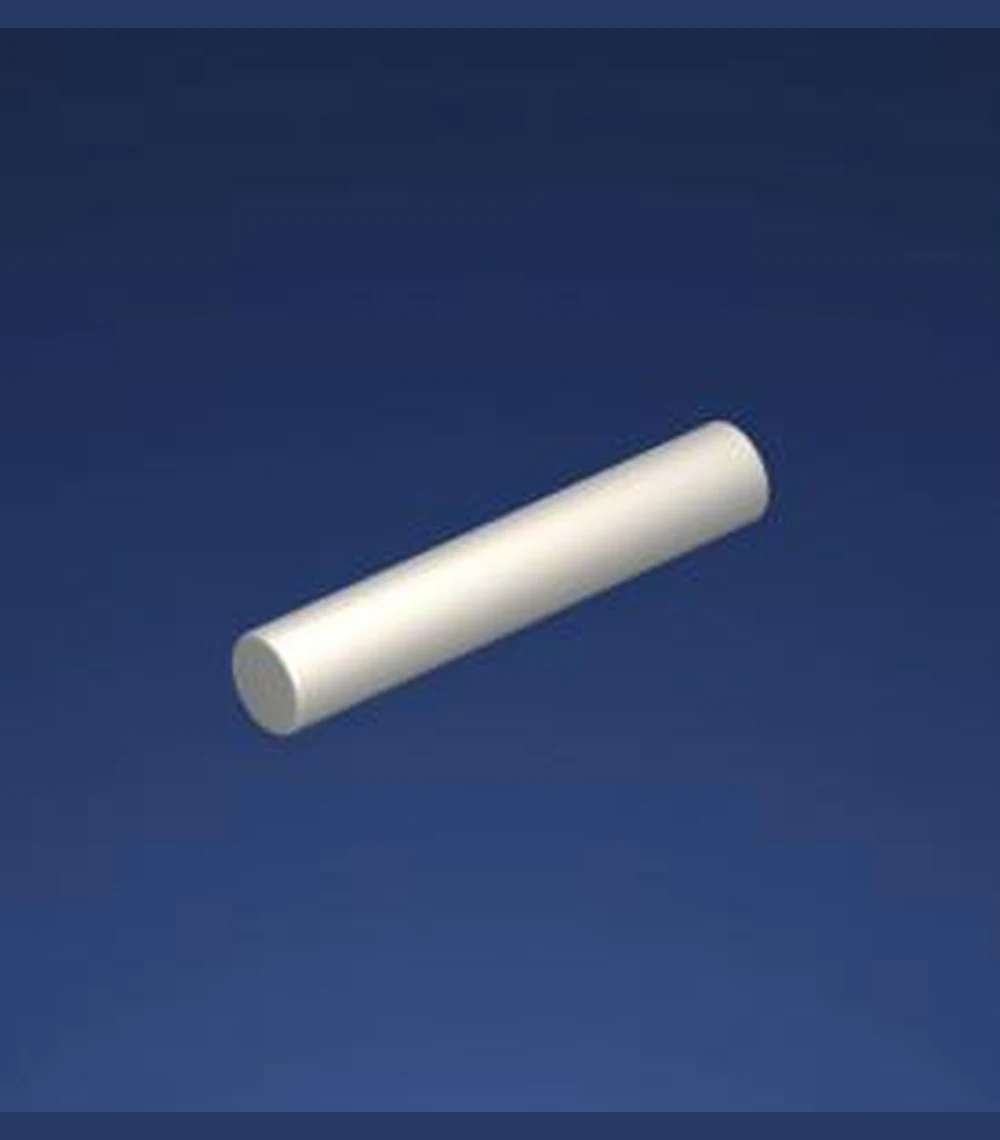

TF997-1114 BARMAG REF. 465241/0 99.7% ALUMINA · Guide Pin · Ø5 × 28
TF997-1114 BARMAG REF. 465241/0 99.7% ALUMINA · Guide Pin · Ø5 × 28

TF997-1114

Barmag Ref. 465241/0

99.7% ALUMINA · Guide Pin · Ø5 × 28

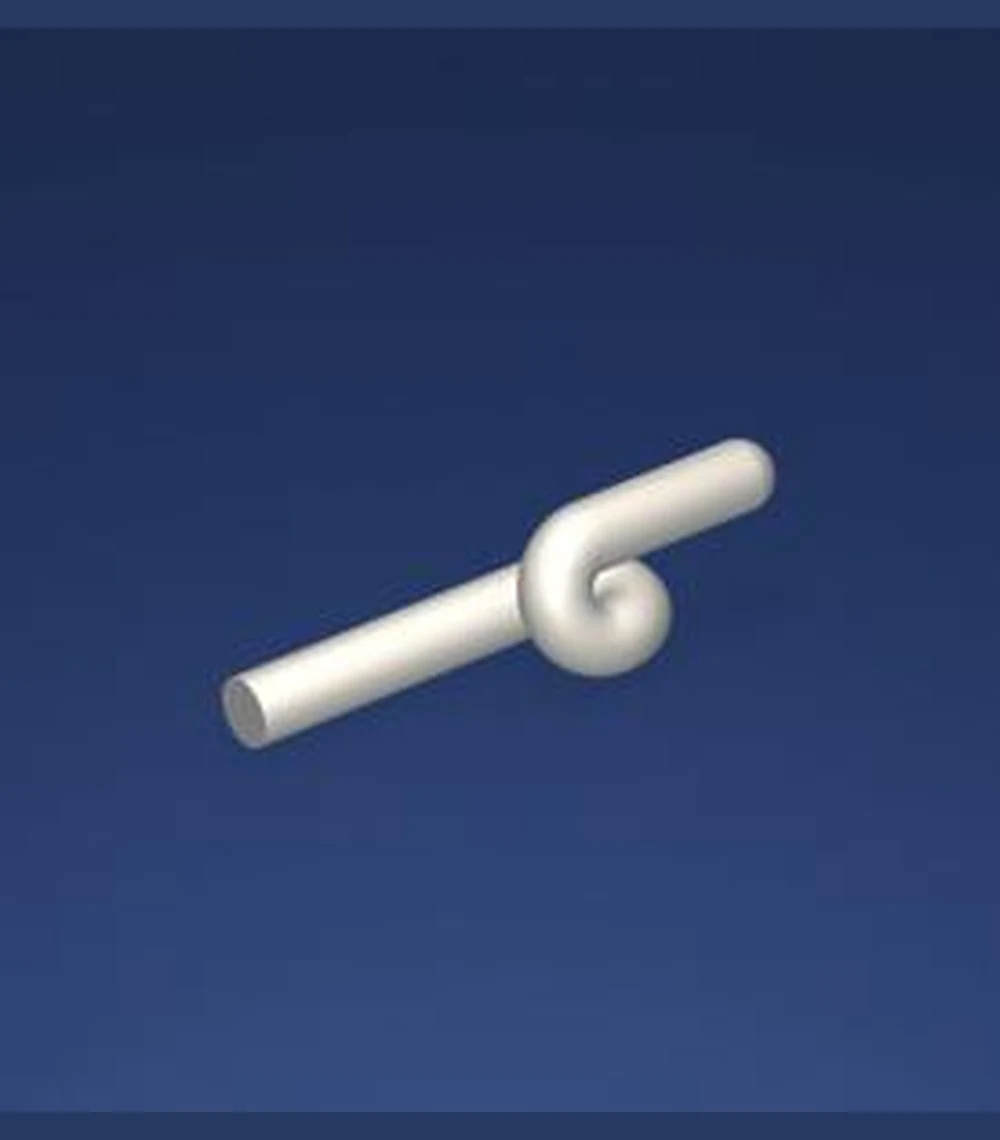

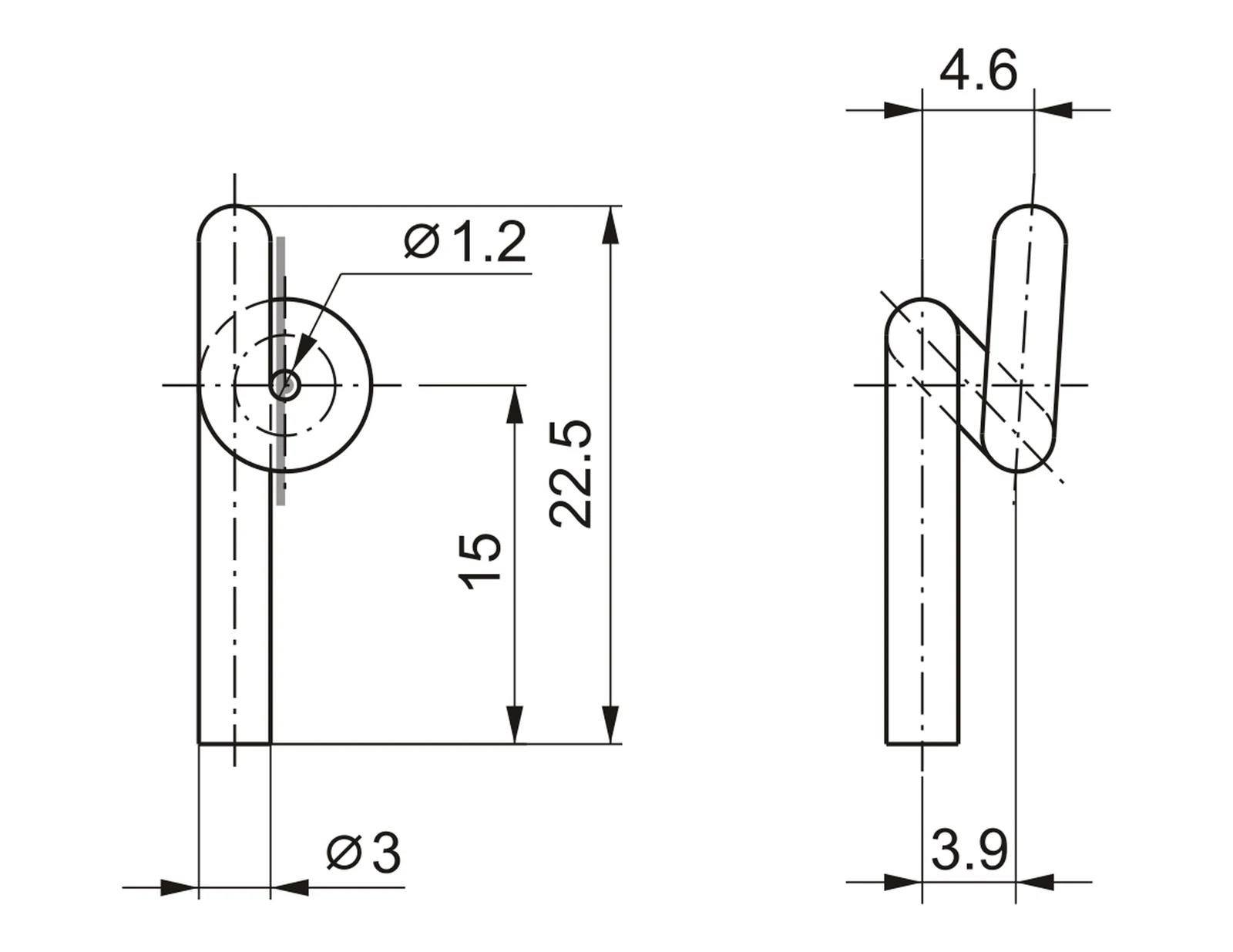

TF997-1244 BARMAG REF. 083786/7 99.7% ALUMINA · Loop Guide · Ø3 × 22.5
TF997-1244 BARMAG REF. 083786/7 99.7% ALUMINA · Loop Guide · Ø3 × 22.5

TF997-1244

Barmag Ref. 083786/7

99.7% ALUMINA · Loop Guide · Ø3 × 22.5

Dimensions in millimetres · Drawings not to scale · Grey line indicates yarn contact surface

Ceramic Yarn Guides

Barmag Ceramic Yarn Guides

Wear resistant and yarn friendly loop, eyelet and profiled guides in 99.7% alumina.

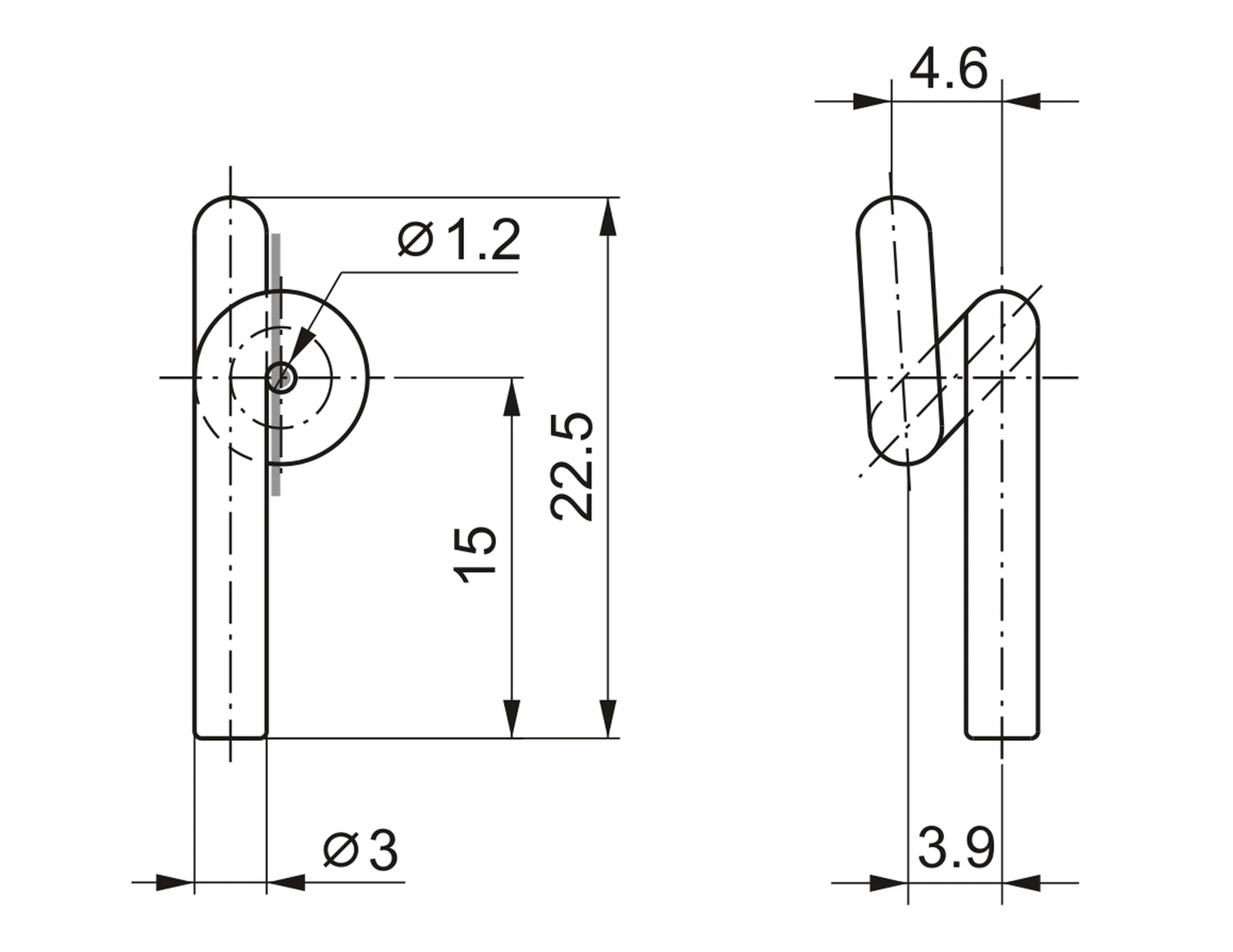

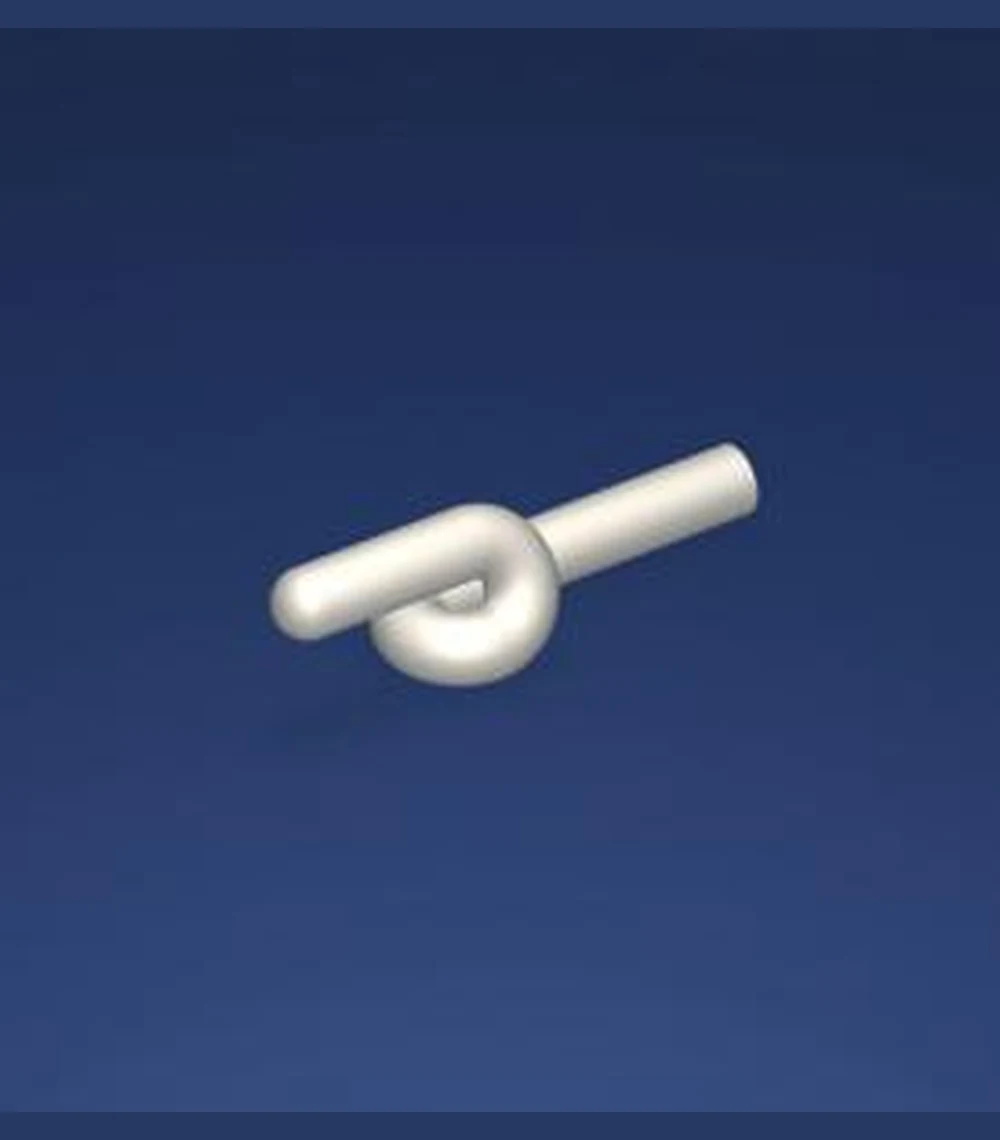

TF997-1247 BARMAG REF. 083787/0 99.7% ALUMINA · Loop Guide · Ø3 × 22.5
TF997-1247 BARMAG REF. 083787/0 99.7% ALUMINA · Loop Guide · Ø3 × 22.5

TF997-1247

Barmag Ref. 083787/0

99.7% ALUMINA · Loop Guide · Ø3 × 22.5

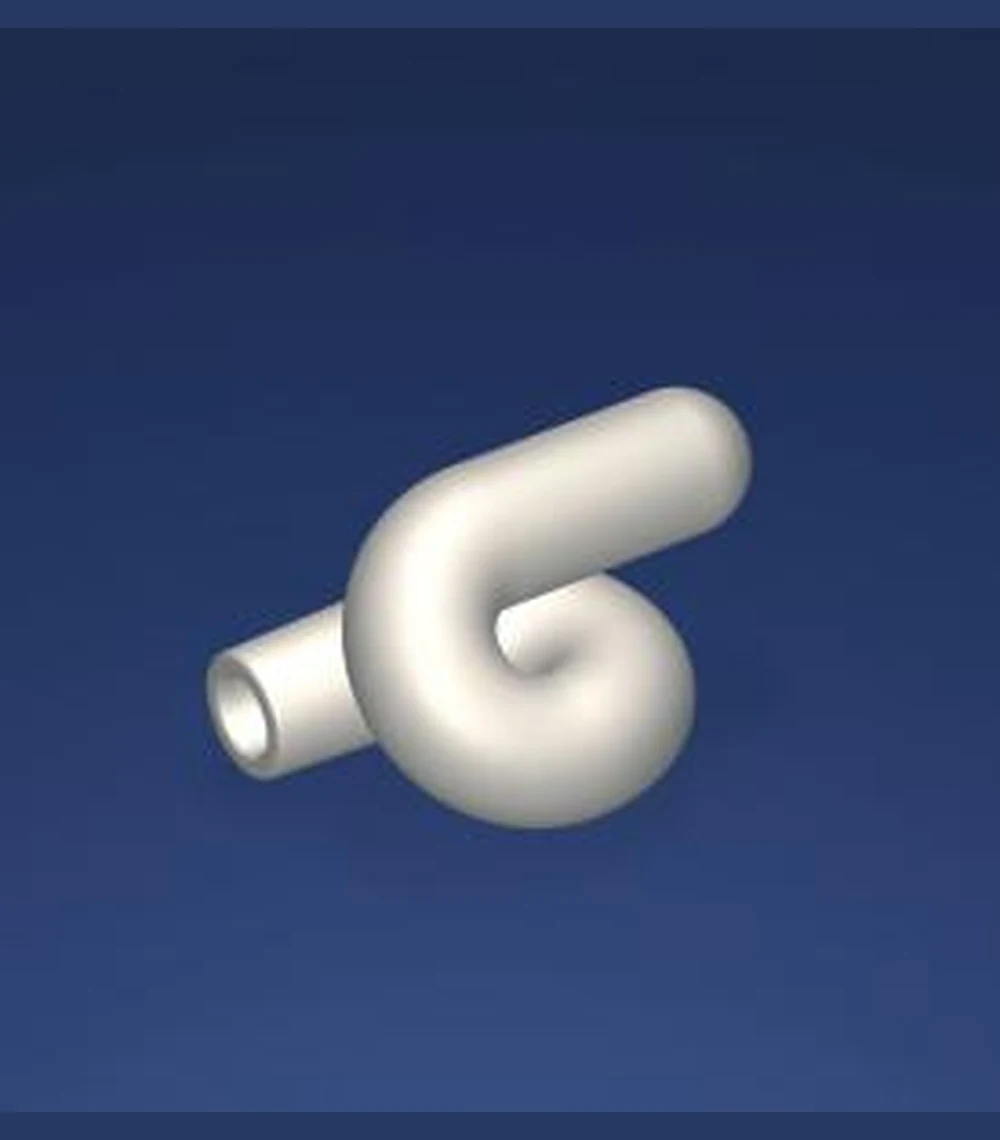

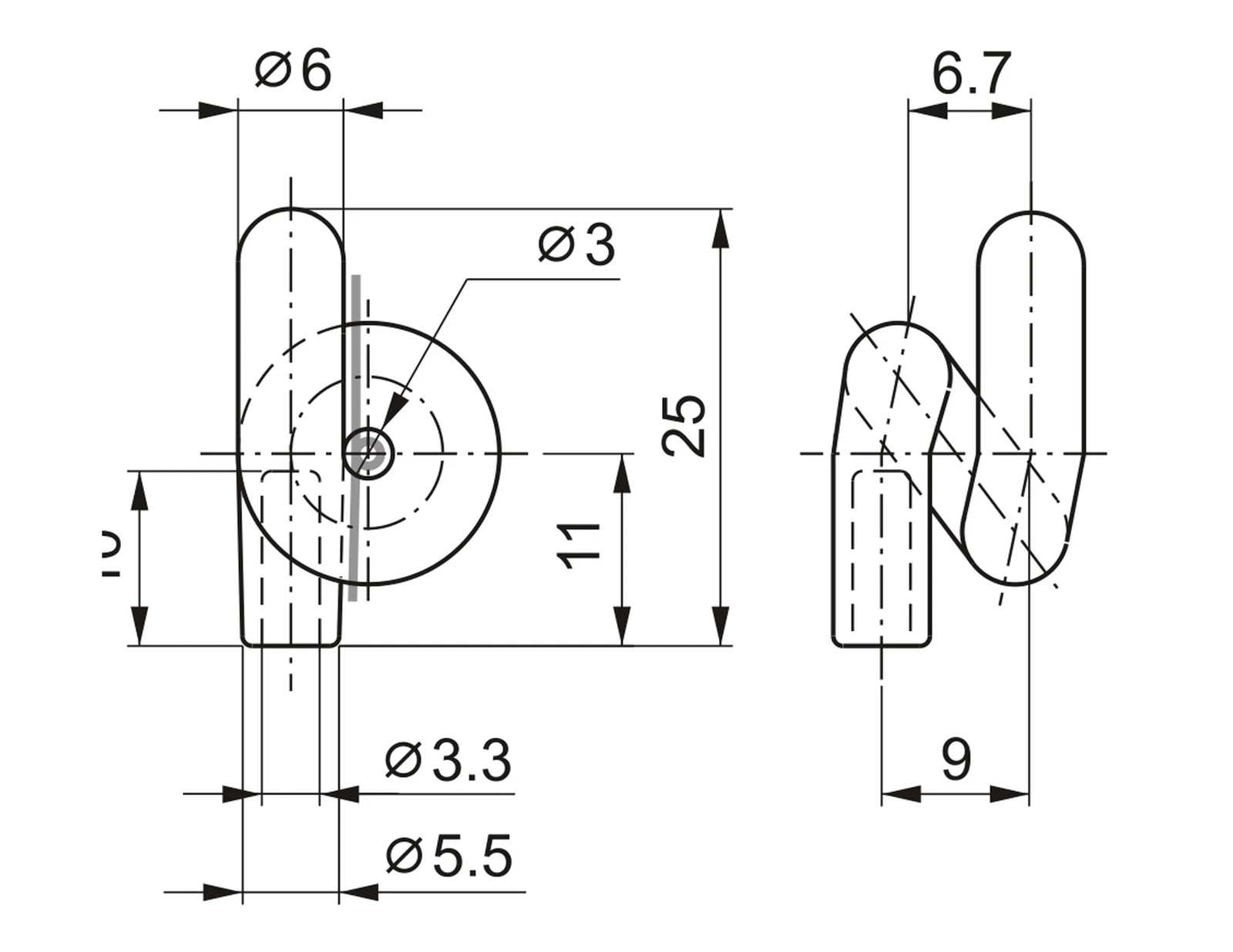

TF997-1249 BARMAG REF. 260370/9 99.7% ALUMINA · Eyelet Guide · Ø6 × 25
TF997-1249 BARMAG REF. 260370/9 99.7% ALUMINA · Eyelet Guide · Ø6 × 25

TF997-1249

Barmag Ref. 260370/9

99.7% ALUMINA · Eyelet Guide · Ø6 × 25

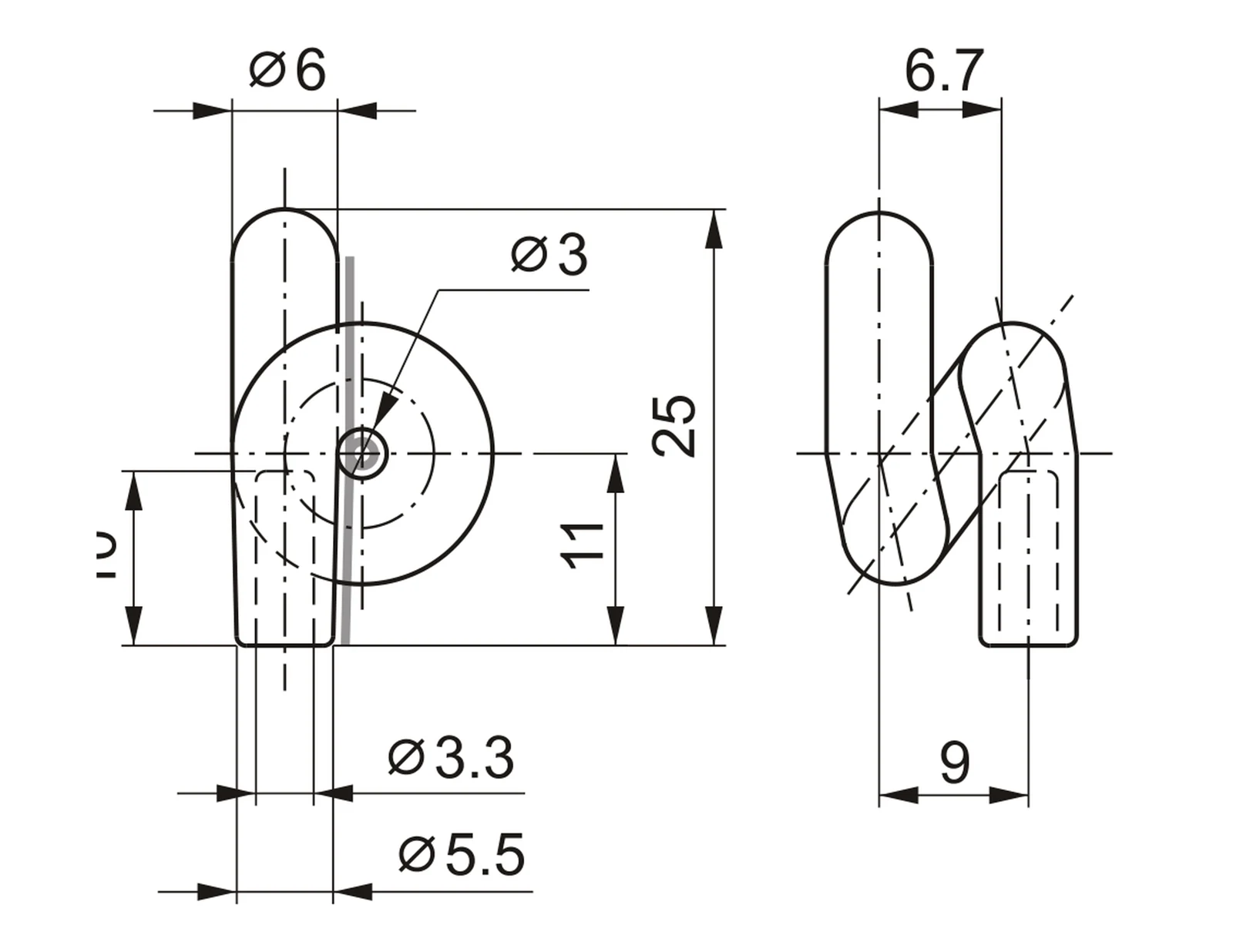

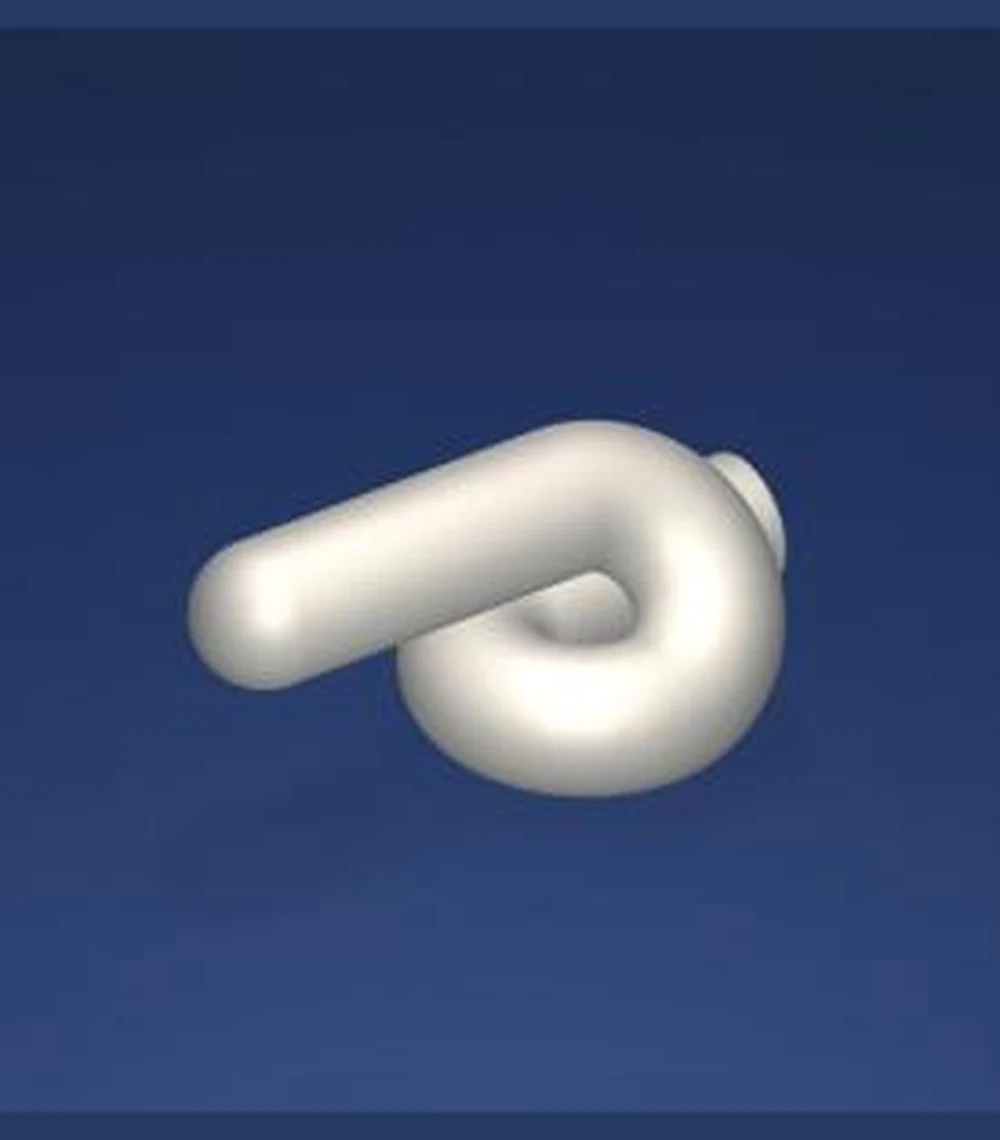

TF997-1250 BARMAG REF. 252820/3 99.7% ALUMINA · Eyelet Guide · Ø6 × 25
TF997-1250 BARMAG REF. 252820/3 99.7% ALUMINA · Eyelet Guide · Ø6 × 25

TF997-1250

Barmag Ref. 252820/3

99.7% ALUMINA · Eyelet Guide · Ø6 × 25

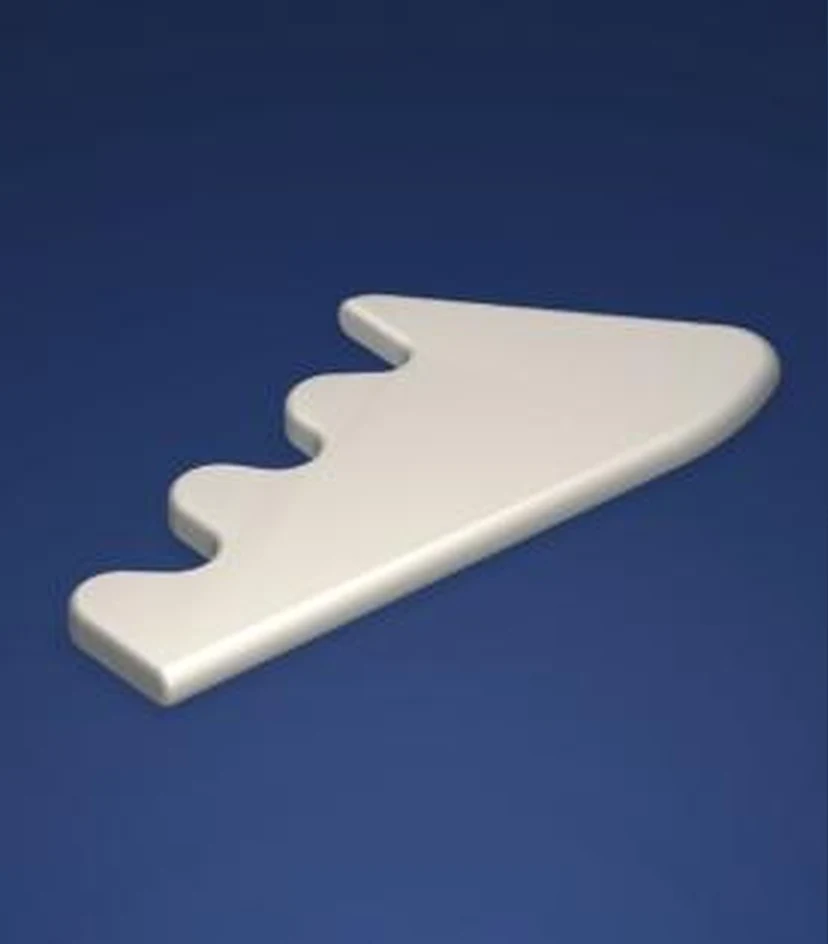

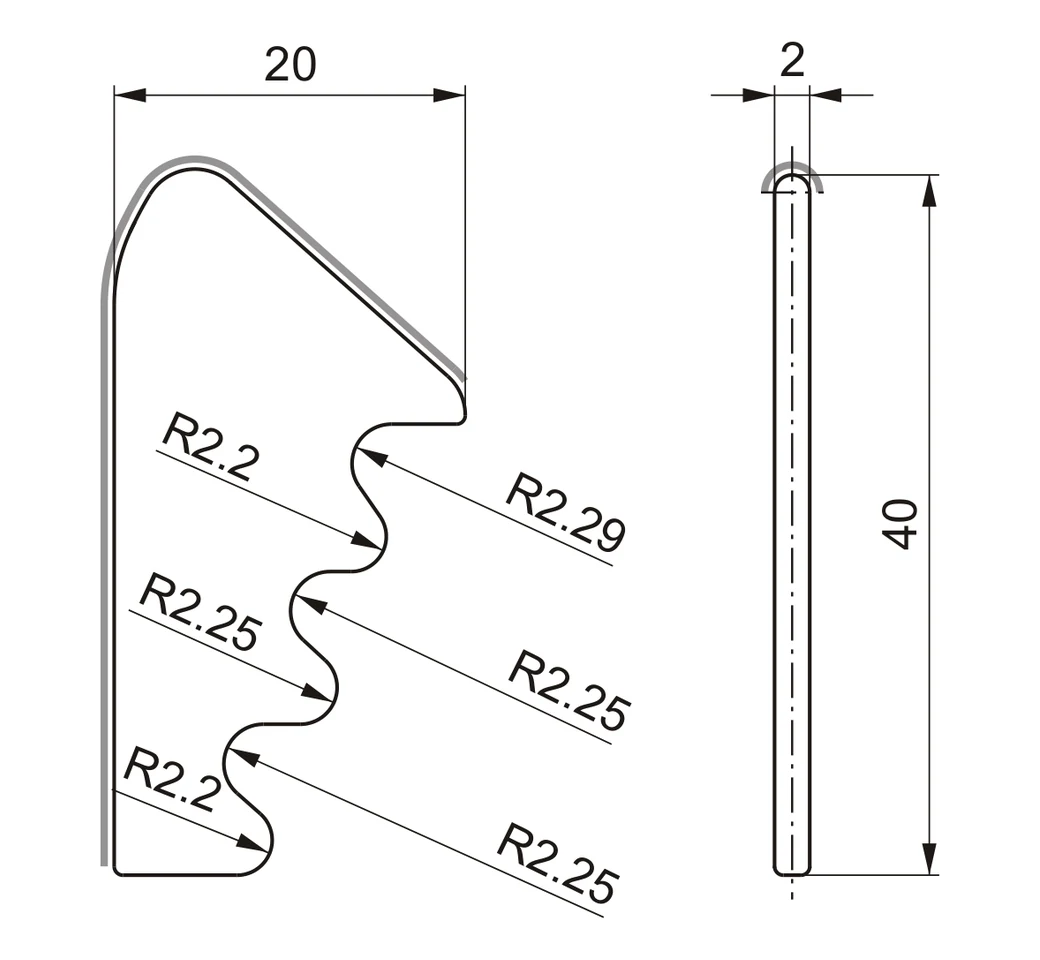

TF997-1280 BARMAG REF. C239344 99.7% ALUMINA · Profile Guide · 20 × 40 × 2
TF997-1280 BARMAG REF. C239344 99.7% ALUMINA · Profile Guide · 20 × 40 × 2

TF997-1280

Barmag Ref. C239344

99.7% ALUMINA · Profile Guide · 20 × 40 × 2

Dimensions in millimetres · Drawings not to scale · Confirm OEM reference and installation position

Ceramic Guide Inserts

Precision Inserts - Series I

Controlled yarn contact profiles in high purity 99.7% alumina.

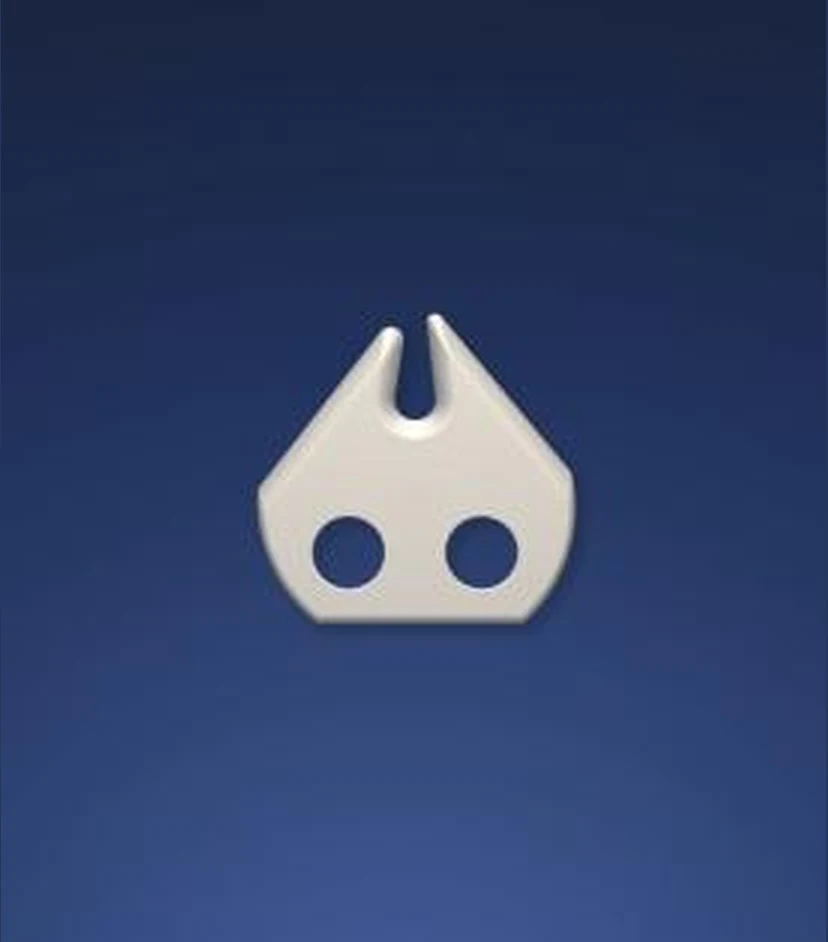

TF997-1306 99.7% ALUMINA · Precision Ceramic Guide
TF997-1306 99.7% ALUMINA · Precision Ceramic Guide

TF997-1306

99.7% ALUMINA · Precision Ceramic Guide

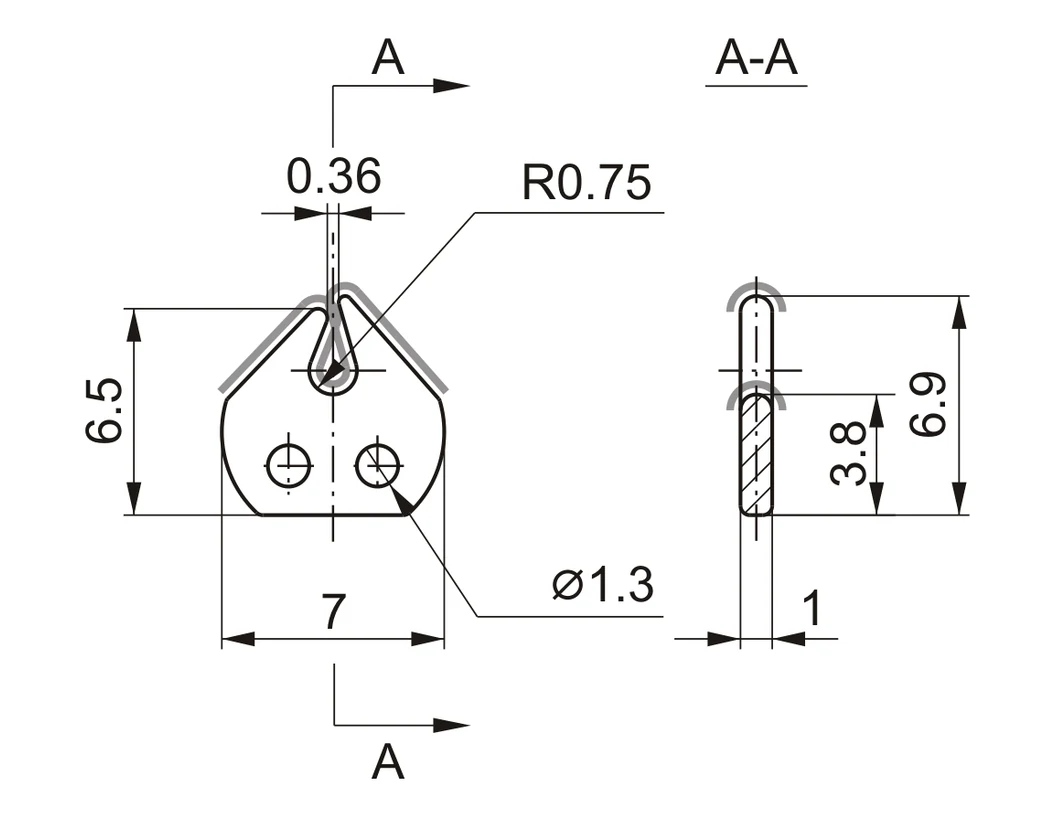

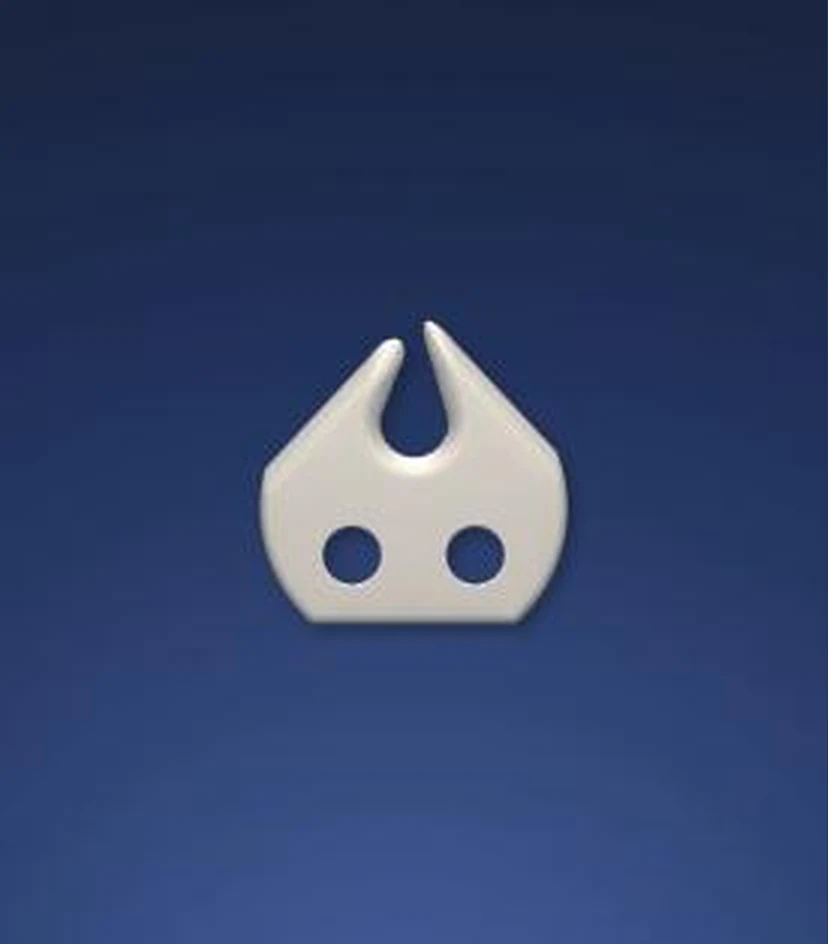

TF997-1213 99.7% ALUMINA · Precision Ceramic Guide
TF997-1213 99.7% ALUMINA · Precision Ceramic Guide

TF997-1213

99.7% ALUMINA · Precision Ceramic Guide

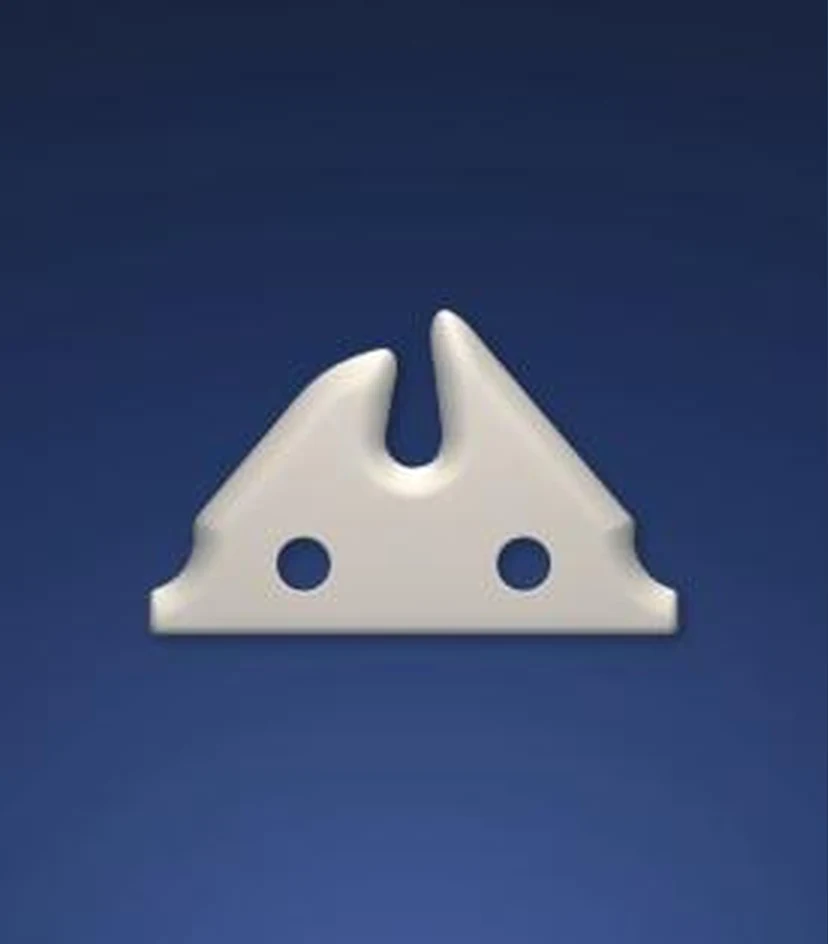

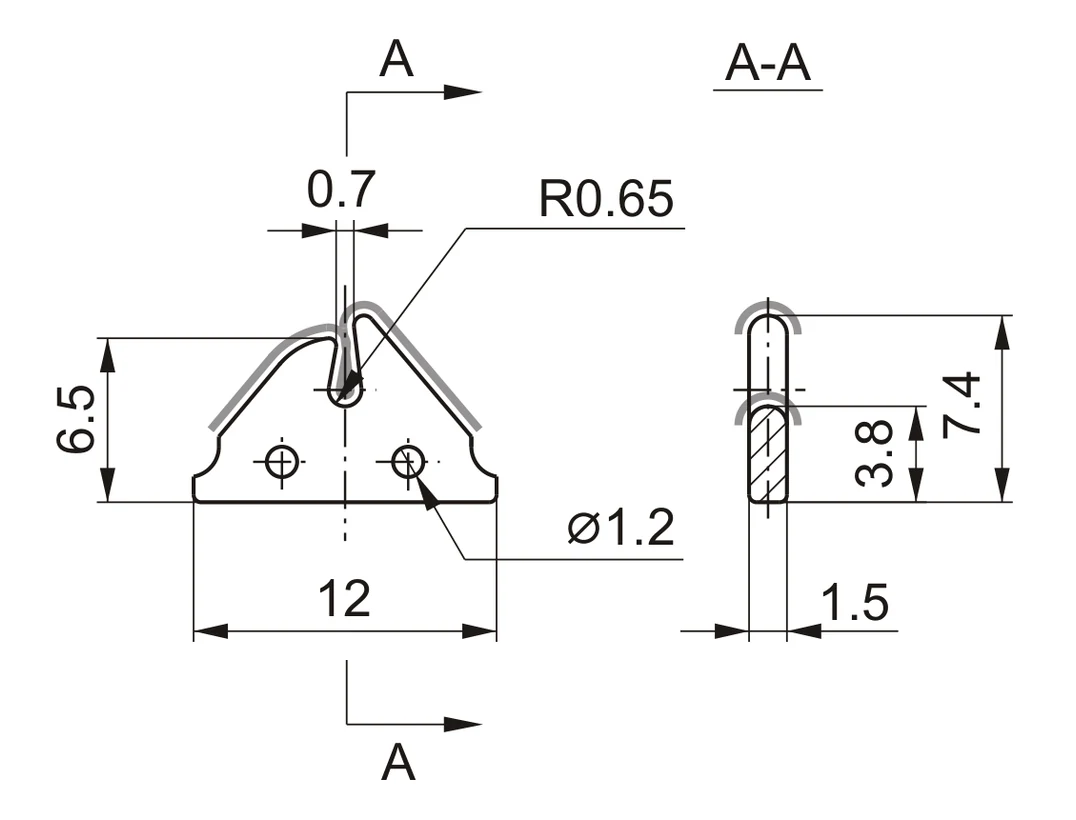

TF997-1313 99.7% ALUMINA · Precision Ceramic Guide
TF997-1313 99.7% ALUMINA · Precision Ceramic Guide

TF997-1313

99.7% ALUMINA · Precision Ceramic Guide

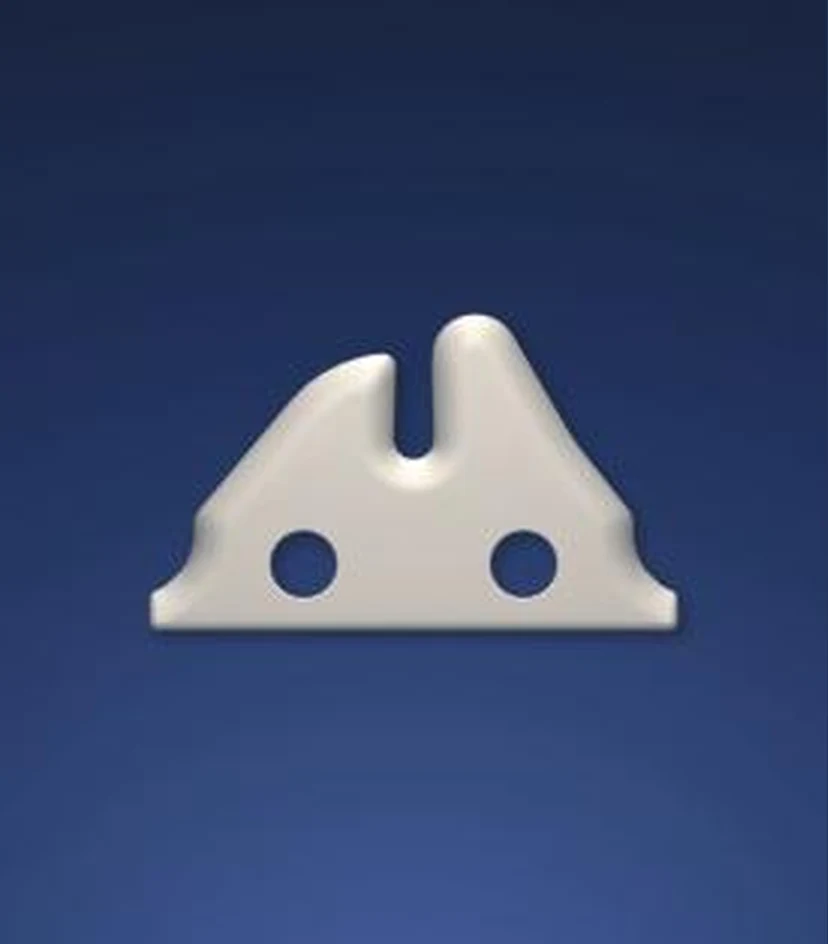

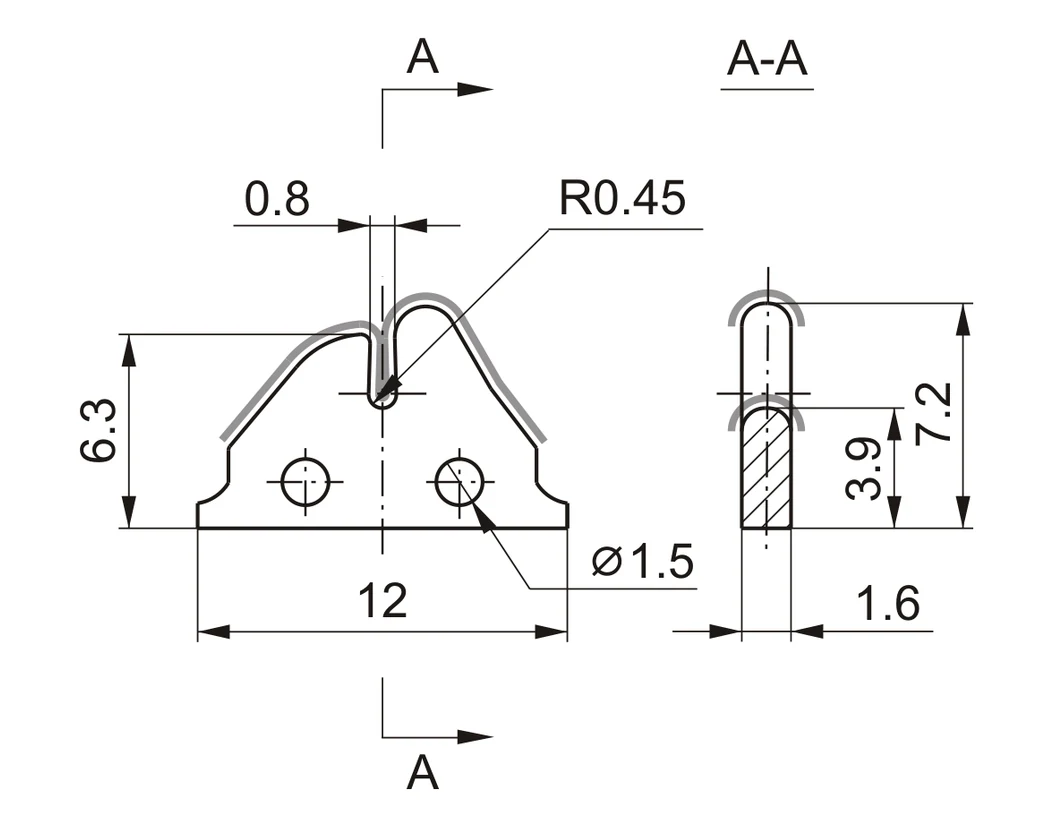

TF997-1215 99.7% ALUMINA · Precision Ceramic Guide
TF997-1215 99.7% ALUMINA · Precision Ceramic Guide

TF997-1215

99.7% ALUMINA · Precision Ceramic Guide

Select by slot width, radius, overall profile, hole pattern and assembly position

Ceramic Guide Inserts

Precision Inserts - Series Ii

Additional guide geometries for application matched yarn contact.

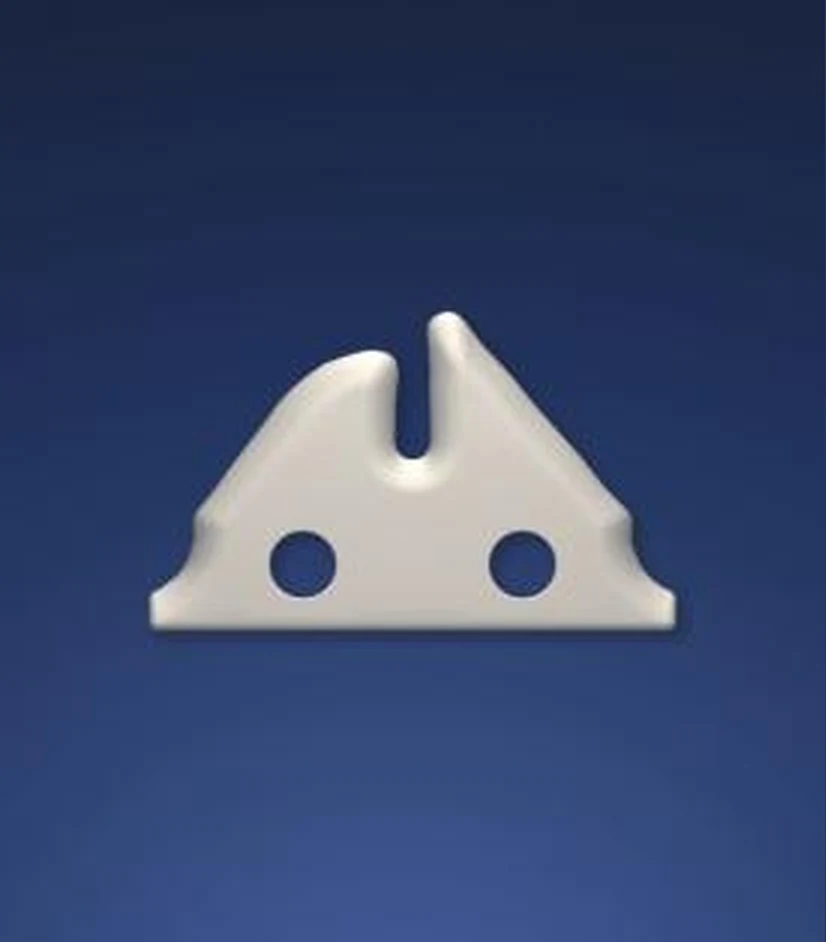

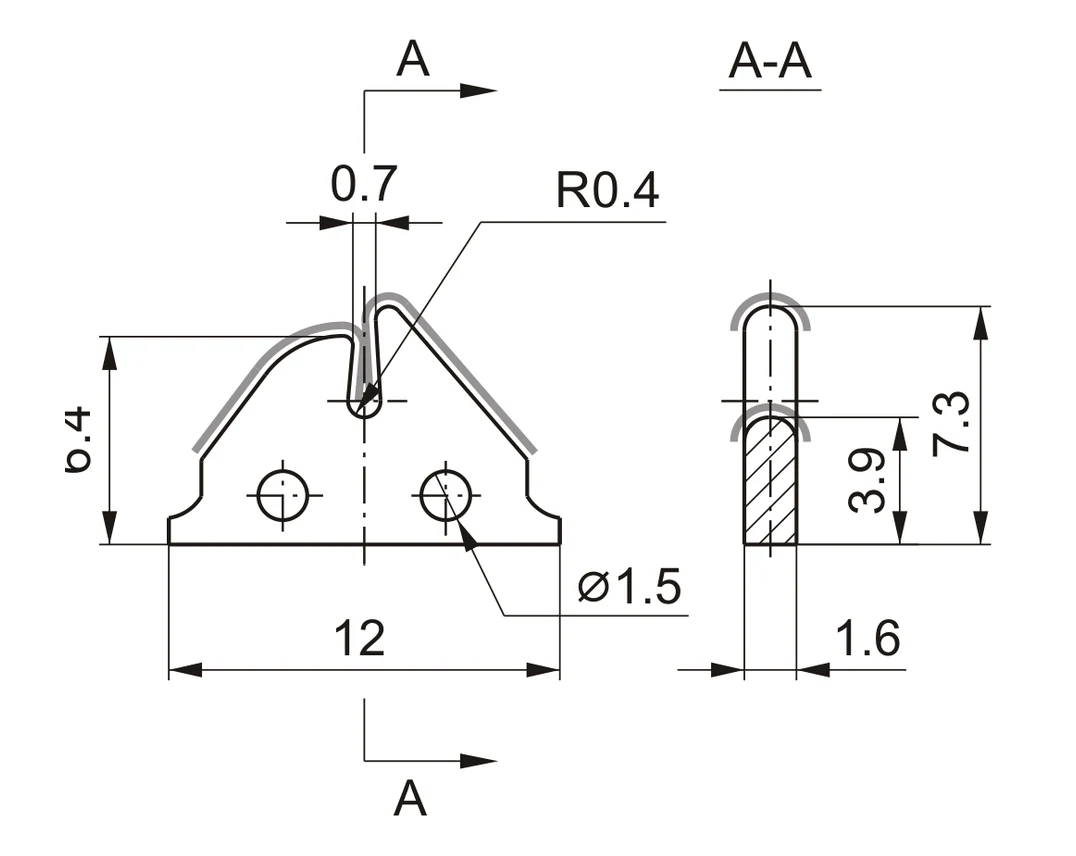

TF997-1216 99.7% ALUMINA · Precision Ceramic Guide
TF997-1216 99.7% ALUMINA · Precision Ceramic Guide

TF997-1216

99.7% ALUMINA · Precision Ceramic Guide

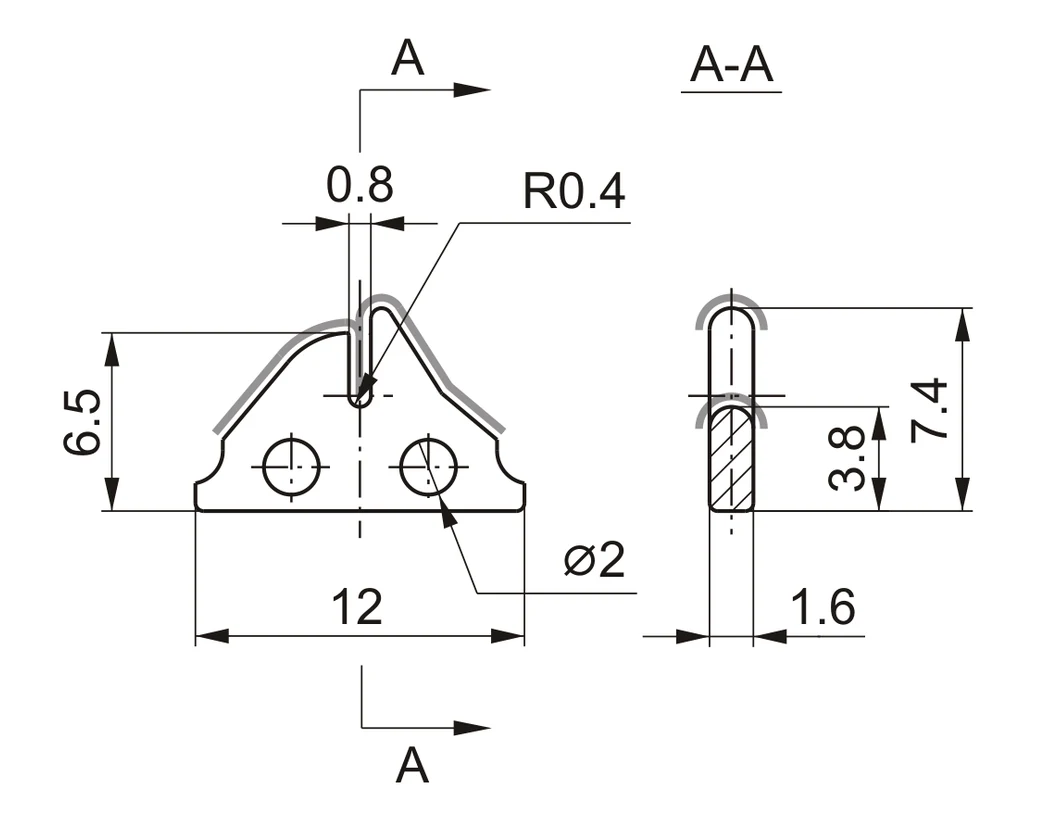

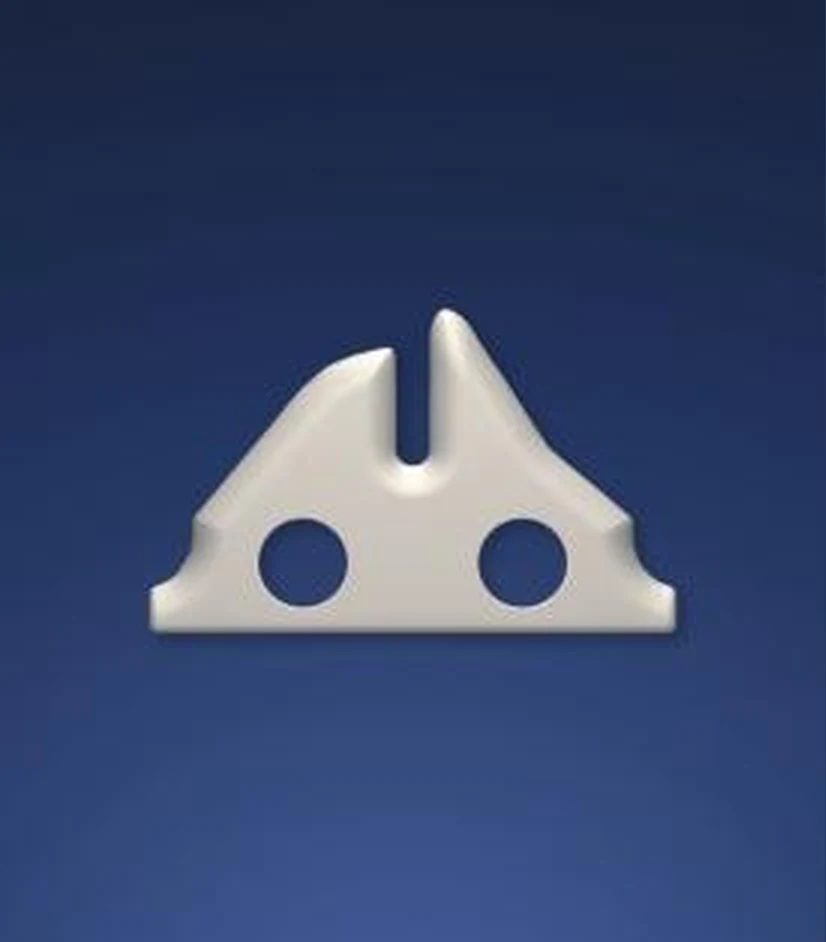

TF997-1219 99.7% ALUMINA · Precision Ceramic Guide
TF997-1219 99.7% ALUMINA · Precision Ceramic Guide

TF997-1219

99.7% ALUMINA · Precision Ceramic Guide

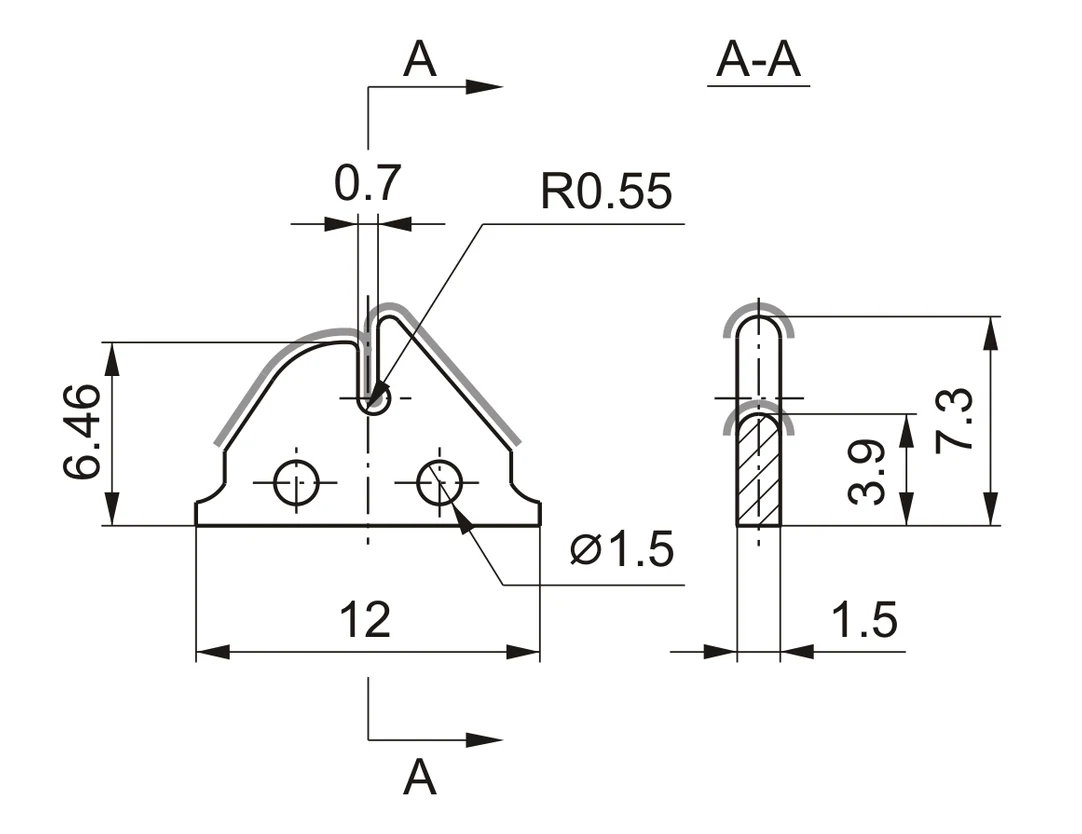

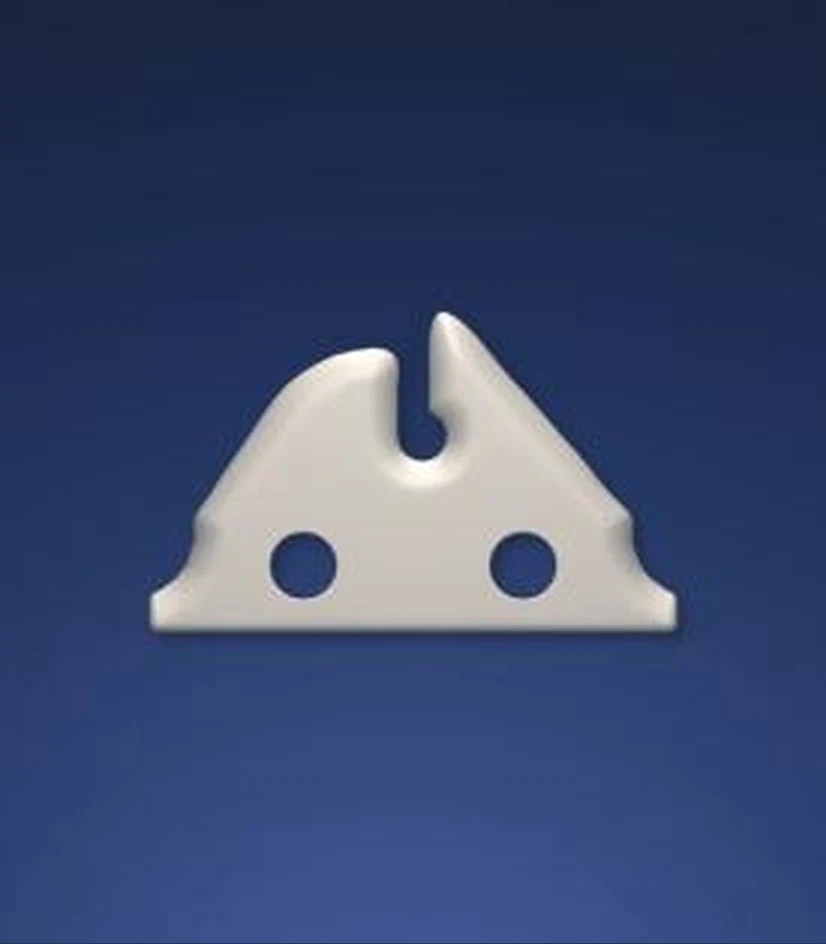

TF997-1218 99.7% ALUMINA · Precision Ceramic Guide
TF997-1218 99.7% ALUMINA · Precision Ceramic Guide

TF997-1218

99.7% ALUMINA · Precision Ceramic Guide

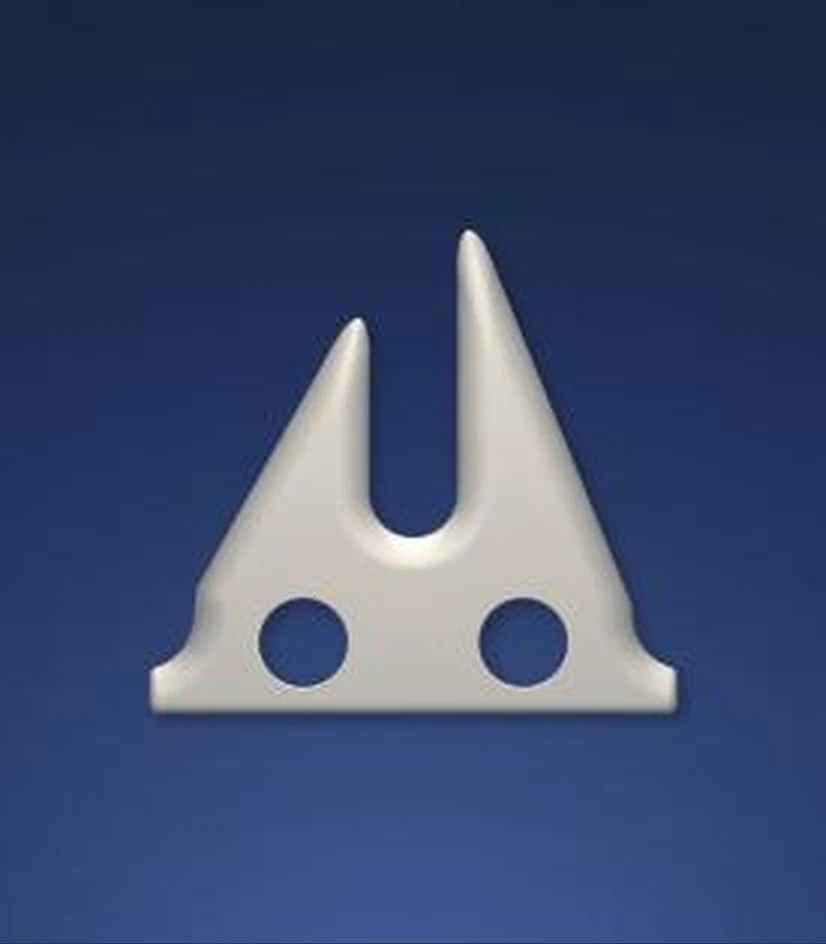

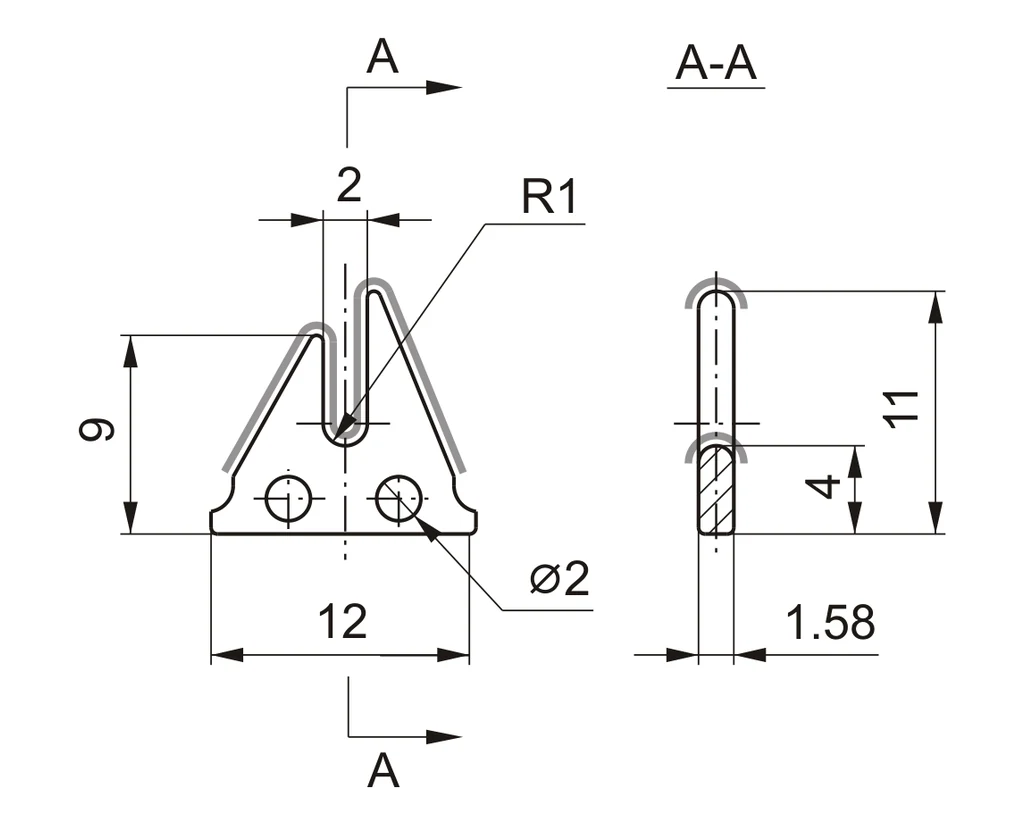

TF997-1220 99.7% ALUMINA · Precision Ceramic Guide
TF997-1220 99.7% ALUMINA · Precision Ceramic Guide

TF997-1220

99.7% ALUMINA · Precision Ceramic Guide

Dimensions in millimetres · Drawings not to scale · Verify yarn contact radius before order

Profiled Ceramic Guides

Profiled Ceramic Winder Guides

Wear resistant and yarn friendly 99.7% alumina profiles with dimensional drawings.

TF997-1280 99.7% ALUMINA · Profile Guide · 20 × 40 × 2
TF997-1280 99.7% ALUMINA · Profile Guide · 20 × 40 × 2

TF997-1280

99.7% ALUMINA · Profile Guide · 20 × 40 × 2

TF997-1315 99.7% ALUMINA · Profile Guide · 20 × 40 × 2
TF997-1315 99.7% ALUMINA · Profile Guide · 20 × 40 × 2

TF997-1315

99.7% ALUMINA · Profile Guide · 20 × 40 × 2

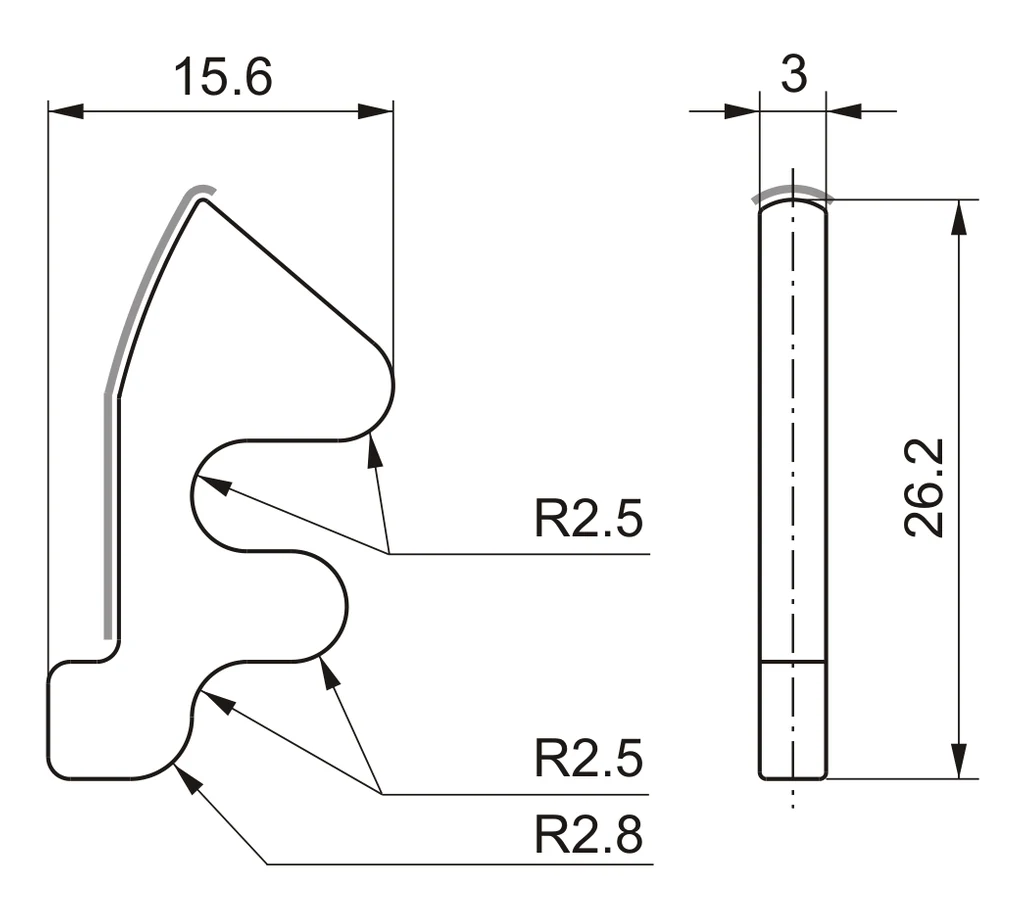

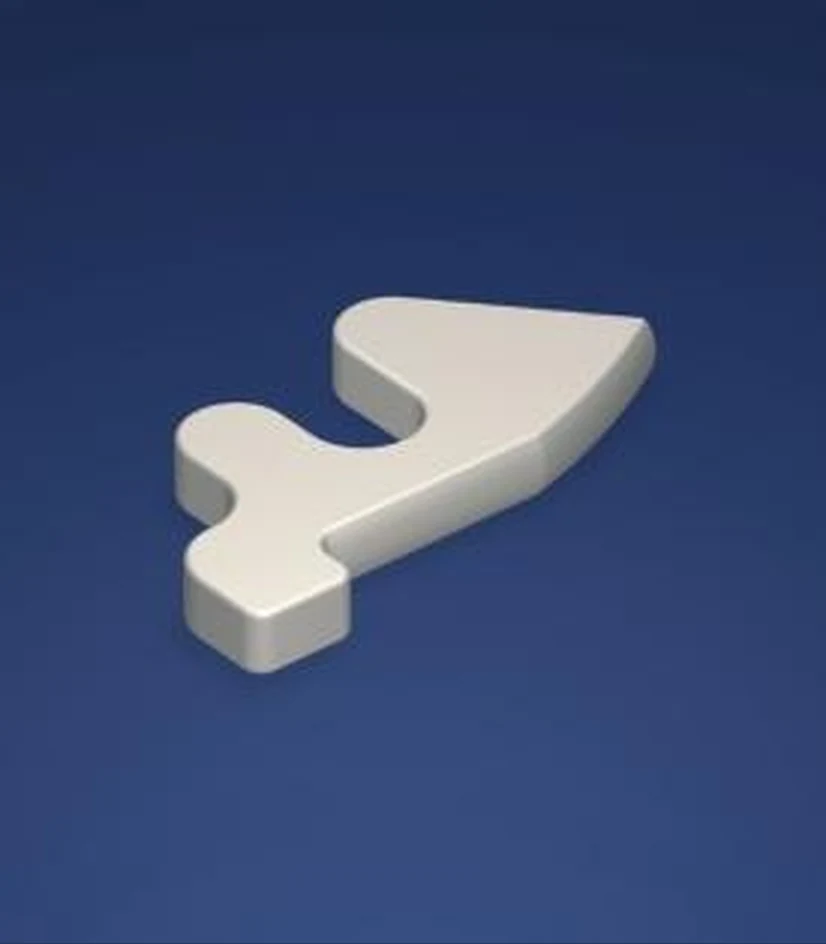

TF997-1507 99.7% ALUMINA · Precision Ceramic Guide
TF997-1507 99.7% ALUMINA · Precision Ceramic Guide

TF997-1507

99.7% ALUMINA · Precision Ceramic Guide

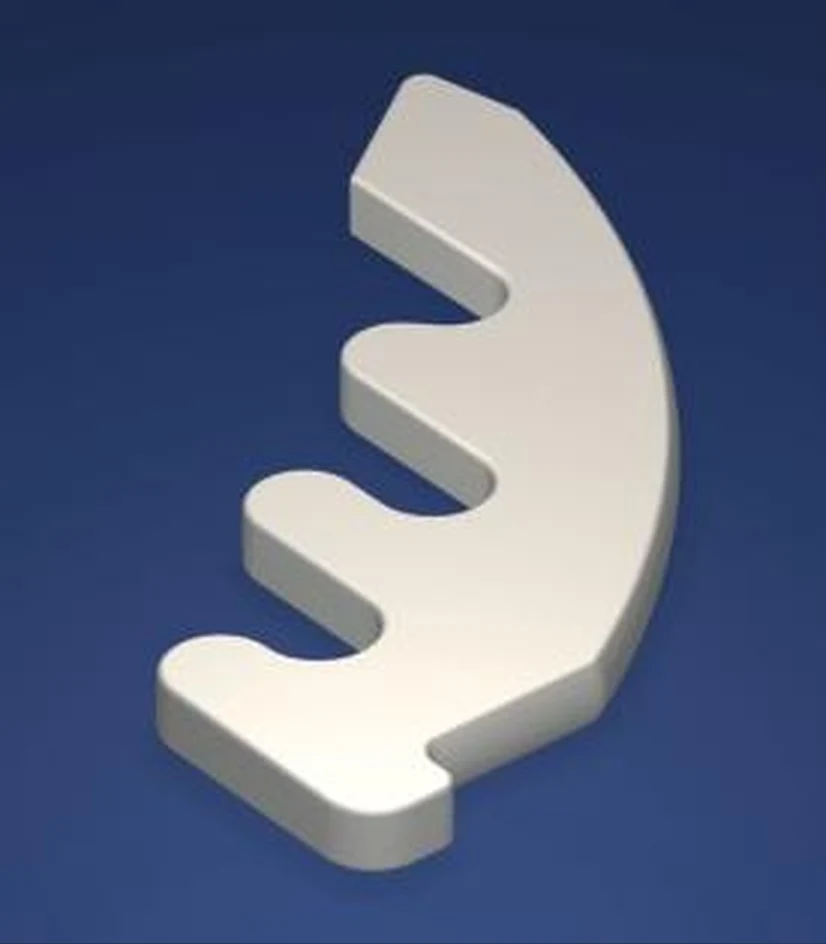

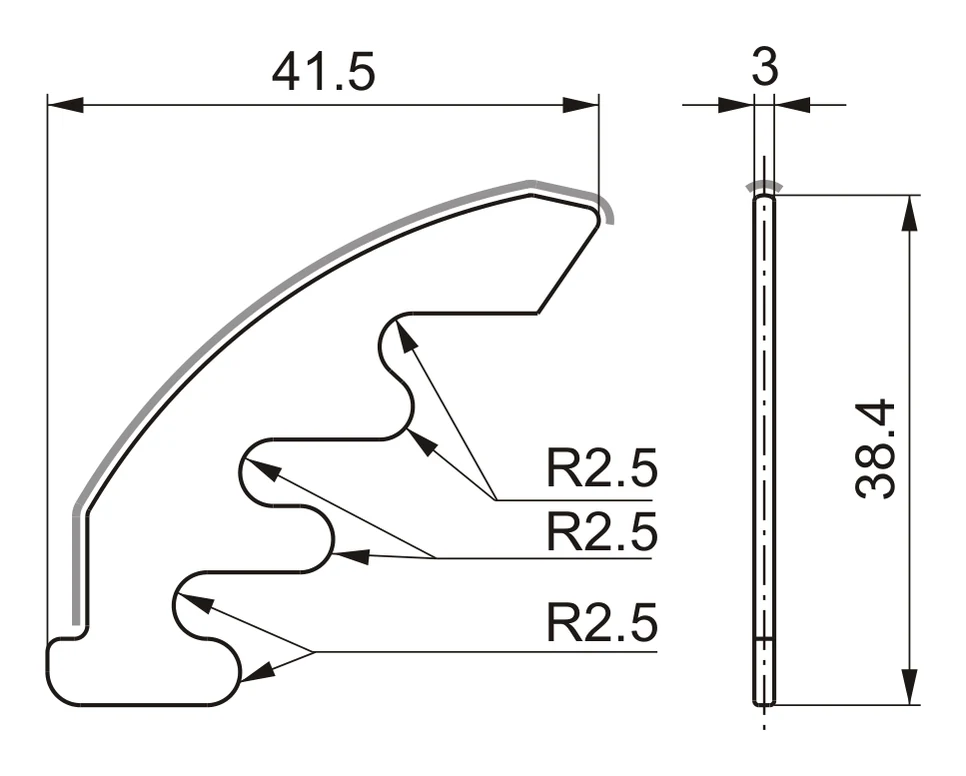

TF997-1508 99.7% ALUMINA · Precision Ceramic Guide
TF997-1508 99.7% ALUMINA · Precision Ceramic Guide

TF997-1508

99.7% ALUMINA · Precision Ceramic Guide

Match the complete profile, thickness, radii and mounting position

Application Focused Support

The Right Solution Starts
with Your Process.

Share your drawing, existing reference or process requirement with our team.

Discuss your application
Call Us WhatsApp Enquiry
